Abb THQB2130ST1 Thqb Mcb 30A 2 Pole

Product Description

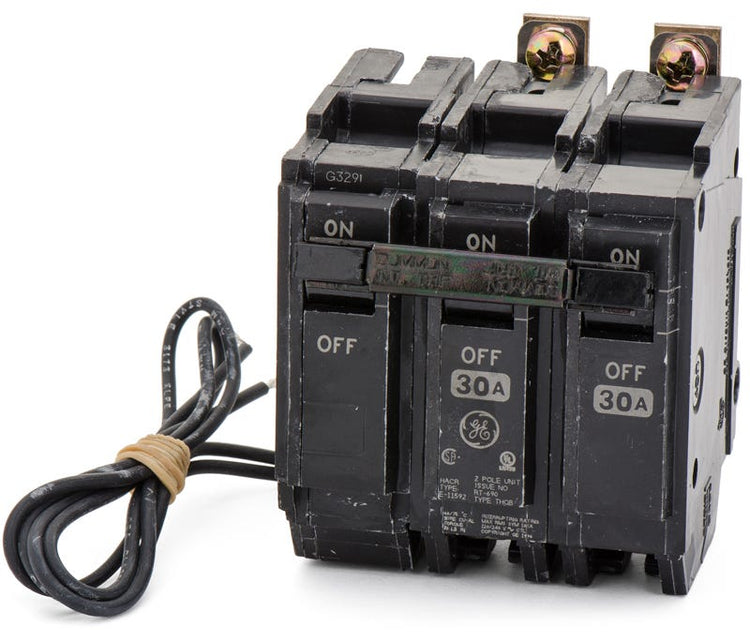

The ABB THQB2130ST1 is a 2-pole, 30-amp miniature circuit breaker with a built-in 120VAC shunt trip, providing remote shutdown capabilities for emergency stops or automated control systems. The Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications.

• Quick-make / Quick-break mechanisms
• Common trip bars
• Easy to spot trip indication

Product Highlights

The THQB2130ST1 installs into GE A-Series panelboards and lighting panels. Its bolt-on mounting style ensures a rigid connection to the bus, while the box lug terminals accept 14-8 AWG copper or 12-8 AWG aluminum wiring.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB2130ST1

Technical Specifications

• Category: Q-Line Miniature Circuit Breakers
• Product Line: TEY / Q-Line (Bolt-On)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 30 A
• System Voltage: 120 Vac
• Poles: 2
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• Brand: ABB / General Electric
• Series: THQB
• Part Number: THQB2130ST1
• Voltage: 120/240VAC
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Bolt-On
• Terminal Type: Box Lugs
• For Use With: GE A-Series Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Padlock Attachment, Handle Lock
• Accessories: Shunt Trip (120VAC)
• Standards: CSA C22.2 No. 5, HACR, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break, Reverse Feed
