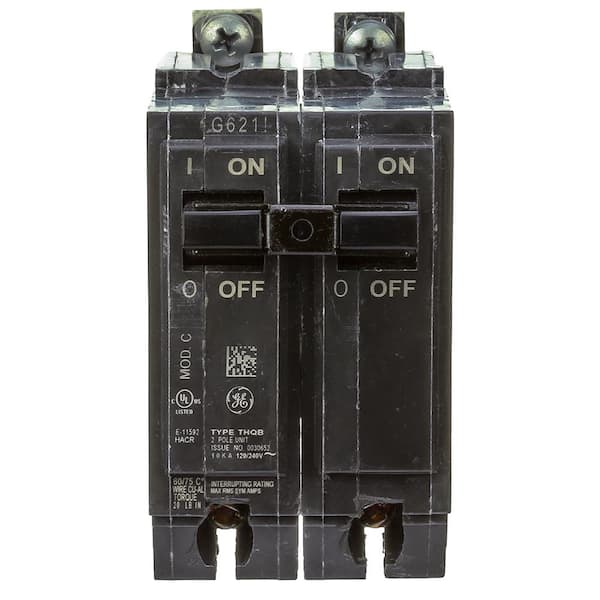

Abb thqb2125 q line circuit breaker 25A

Product Description

The ABB THQB2125 Q Line circuit breakers are compact, thermal-magnetic devices designed for residential and commercial applications. The QB breakers are bolt-on versions of the Q Line used for bolting to the bus connections of load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms and common trip bars.

• Quick-make / Quick-break mechanisms
• Common trip bars
• Easy to spot trip indication

Product Highlights

Q Line circuit breakers are one-inch wide per pole and designed for residential and commercial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB2125
• Country of Origin: UKN

Technical Specifications

• Category: Q-Line Miniature Circuit Breakers
• Product Line: TEY / Q-Line (Bolt-On)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 25 A
• System Voltage: 120 Vac
• Poles: 2
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
• Long Time: Fixed
• Instantaneous: Fixed
• Protective Relays: No
• Current Metering: No
• Special Markings: HACR
• UL File #: E11592
• Mounting Style: Bolt-On
• Number of Poles: 2
• Voltage Rating: 120/240 V
• Type: THQB, Compact, Residential, Commercial
• Series: Q Line, QC Breaker
• Mounting Type: Bolt-On
