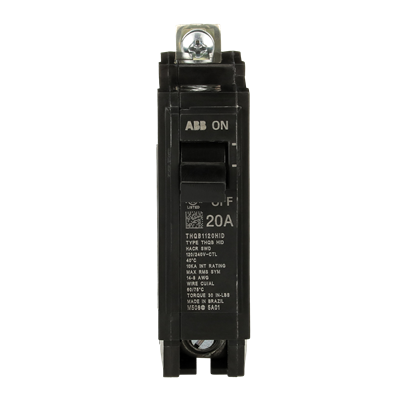

Abb THQB1120HID MCB 20A 10kA 1P 120/240V HID

Product Description

The ABB THQB1120HID is a Q line circuit breaker, a one-inch wide per pole, compact, thermal-magnetic device designed for residential and commercial applications. It features Quick-make / Quick-break mechanisms and common trip bars. This breaker has a 20 A amperage, 10 kAIC interrupting rating at 120/240 Vac, and is suitable for HID applications.

• Compact, thermal-magnetic devices
• Quick-make / Quick-break mechanisms
• Common trip bars
• Suitable for HID applications

Product Highlights

The ABB THQB1120HID circuit breaker is designed for safety and reliability in residential and commercial settings.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THQB1120HID
• Country of Origin: UKN

Technical Specifications

• Category: Q-Line Miniature Circuit Breakers
• Product Line: TEY / Q-Line (Bolt-On)
• Trip Style: Non-Interchangeable
• Frame Type: Q-Line
• Amperage: 20 A
• System Voltage: 120 Vac
• Poles: 1
• Trip Function: LI
• Continuous Current Rated: Standard
• 120 Vac Interrupting Rating: 10 KAIC
• 120/240 Vac Interrupting Rating: 10 KAIC
• Suitable for Reverse Feed: Yes
• Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
• Long Time: Fixed
• Instantaneous: Fixed
• Special Markings: HACR
• UL File #: E11592
