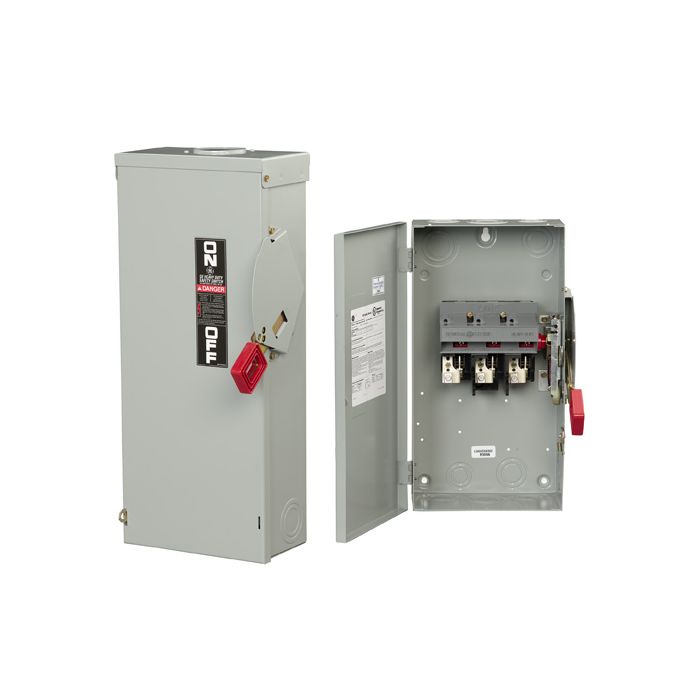

Abb thn3364r heavy duty non-fusible safety switch 600 VAC 200 A

Product Description

The ABB THN3364R heavy-duty, non-fusible safety switch is designed for commercial and industrial applications where safety and high performance are essential. It is listed to UL standard 98 for enclosed and dead front switches and certified to CSA standard 22.2 no. 4-04. Suitable as service equipment when installed per the National Electrical Code.

• Designed for commercial and industrial applications
• Listed to UL standard 98 enclosed and dead front switches
• Suitable for use as service equipment when installed in accordance with the National Electrical Code

Product Highlights

This heavy-duty safety switch is reliable and easy to install, suitable for various commercial and industrial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THN3364R

Technical Specifications

• Application: Heavy
• Enclosure: NEMA 3R (Outdoor)
• Voltage Rating: 600 VAC
• Amperage Rating: 200 A
• Number of Poles: 3
• Horsepower: 150 hp
• Fusing: No Fuse
• Wire Range (Cu/Al): 2-250
• 240 Vac, NEC Std, 1-ph: 30.0 hp
• 240 Vac, NEC Std, 3-ph: 60.0 hp
• 480 Vac, NEC Std, 1-ph: 50.0 hp
• 480 Vac, NEC Std, 3-ph: 125.0 hp
• 600 Vac, NEC Std, 1-ph: 50.0 hp
• 600 Vac, NEC Std, 3-ph: 150.0 hp
• 250 Vdc: 40.0 hp
• GSA Compliance: Yes
• cUL Listed: Yes
• UL Listed: Yes
• Type: Heavy Duty Non-Fusible
• Series: THN
• Phase: 3
• Frequency Rating: 50/60 Hz
• Number of Wires: 3
• Short Circuit Current Rating: 200 kA
• Actuator Type: Handle
• Mounting Type: Surface
• Temperature Rating: 60/75 deg C
