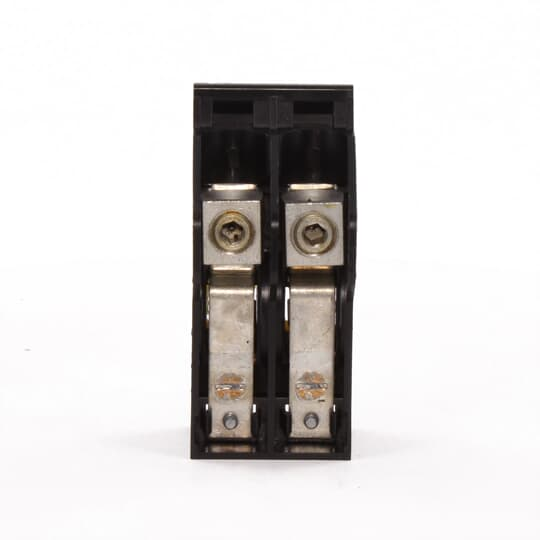

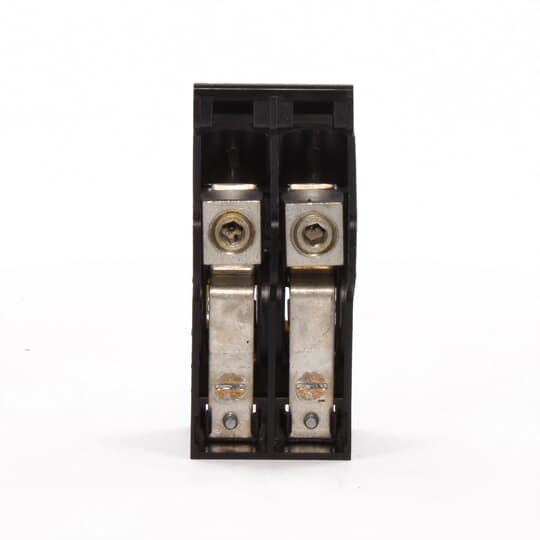

Abb THLK2200 Subfeed Lug Kit 200A 2-pole

Product Description

The ABB THLK2200 is a 2-pole plug-in subfeed lug kit designed to supply power to a subpanel from a main load center. Rated at 200 amps, the kit installs directly into compatible breaker panel positions without the need for additional hardware, offering an economical method for extending service to a downstream distribution panel. It supports both sub-feed and feed-through lug configurations, giving installers flexibility depending on the application. Licensed electricians and panel installers are the primary trade for this component.

The THLK2200 is suited for residential and light commercial electrical distribution systems where a cost-effective subfeed connection is required. It is typically installed in load centers when a homeowner or facility adds a subpanel for a detached garage, workshop, or additional circuit capacity. The plug-in design simplifies installation and reduces labor compared to hardwired lug options.

Key Features

• 200-amp rating supports full subpanel feed capacity
• 2-pole configuration for standard single-phase subfeed applications
• Plug-in design eliminates need for separate mounting hardware
• Functions as either a sub-feed or feed-through lug kit
• Economical alternative to dedicated subfeed breaker configurations

Compatibility

Designed as an OEM-style plug-in subfeed lug kit for compatible ABB load center panels accepting 2-pole plug-in lug accessories.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the NEC and all applicable local electrical codes. De-energize the main panel and verify absence of voltage before handling any internal panel components. The plug-in design requires proper seating in the bus bar slots to ensure solid electrical contact. Do not exceed the 200-amp rating of the lug kit when sizing the subpanel or conductors.

Technical Specifications

• Amperage Rating: 200 amps
• Number of Poles: 2
• Configuration: Sub-feed or feed-through lug
• UPC: 783164158441

Standard Information

• Brand: ABB
• Manufacturer Part Number: THLK2200
