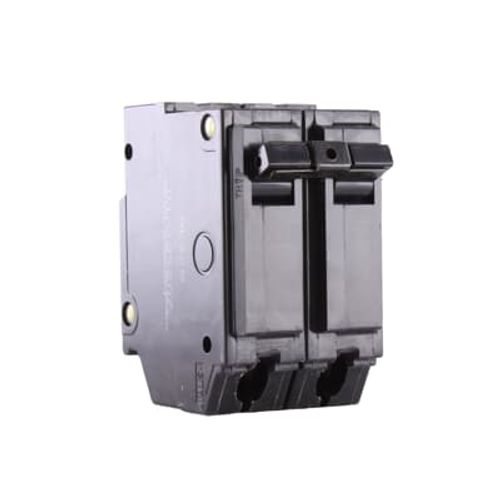

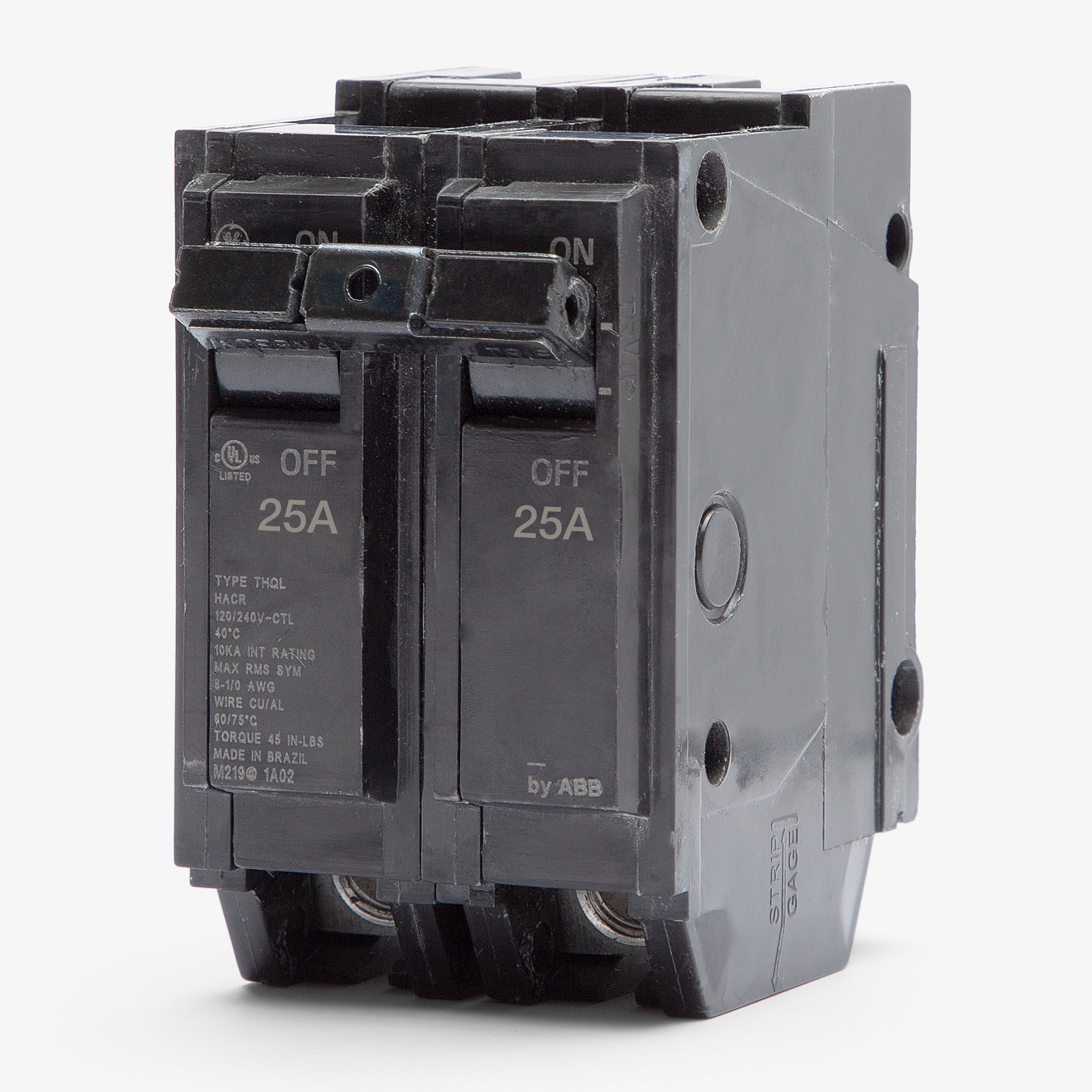

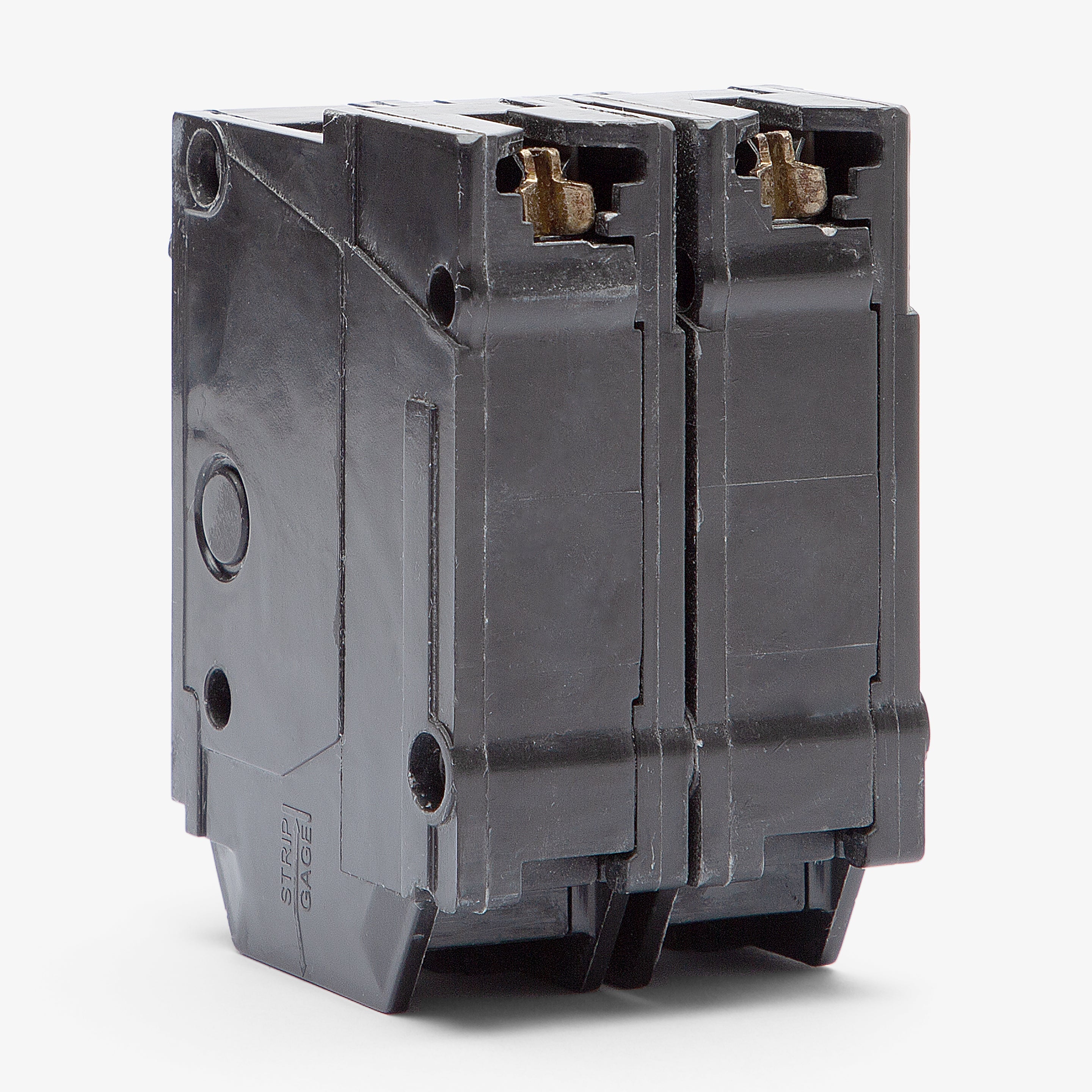

Abb THHQL2125 THQL Q-Line Circuit Breaker 25A

Product Description

The ABB THHQL2125 Q line circuit breakers are compact, thermal-magnetic devices designed for residential and commercial applications. These QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. Delivers 25 amps of reliable overcurrent protection. Installs into GE A-Series panelboards, PowerMark Gold, and ABB ReliaHome load centers.

• Quick-make / Quick-break mechanisms
• Internal common trip bar
• HACR rated for heating and cooling equipment

Product Highlights

The ABB THHQL2125 circuit breaker provides reliable overcurrent protection for residential and commercial systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THHQL2125

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 120/240 V
• Amperage Rating: 25 A
• Number of Poles: 2
• Interrupt Rating: 22kA@120 Vac / 22kA@120/240 Vac
• Product Type: Circuit Breaker
• Series: THQL
• Part Number: THQL2125
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE A-Series Panelboards (Types AL, AQ), GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
• Max Wire: 8 AWG
• Min Wire: 14 AWG (Cu), 12 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
• Standards: HACR, UL 489
• Approval: UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break
• Current Rating: 25 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Smart Home Compatibility: Not Smart Home Compatible
• Voltage: 240 Volts (AC)
