Abb thhql21100 Q-Line 100A

Product Description

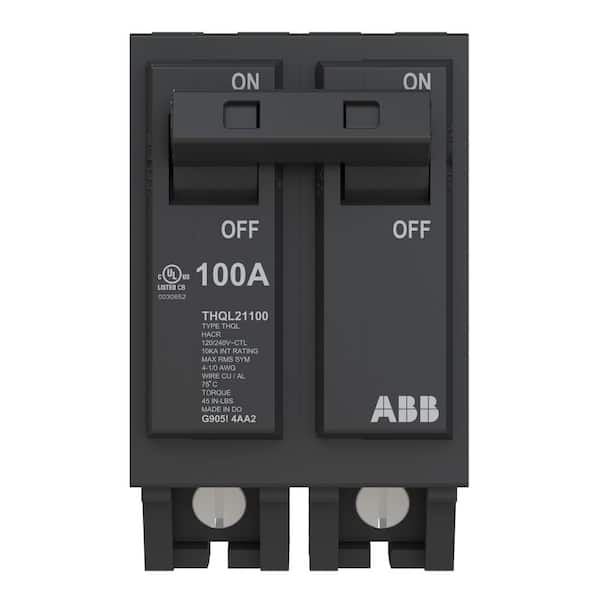

The ABB THHQL21100 is a Q-Line circuit breaker designed for residential and commercial applications. This 100A, two-pole miniature breaker provides overload and short-circuit protection. It features Quick-make / Quick-break mechanisms and easy to spot trip indication to ensure safety and reliability. It is suitable for installation in GE Q-Line, PowerMark Gold, and ABB ReliaHome load centers.

• Compact, thermal-magnetic design
• Quick-make / Quick-break mechanisms
• Suitable for residential and commercial applications

Product Highlights

The ABB THHQL21100 circuit breaker provides reliable protection for residential and commercial electrical systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: THHQL21100

Technical Specifications

• Frame: Q-Line
• Trip Type: LI
• Trip Range: Non-Interchangeable
• Load Rating: HACR
• Voltage Rating: 120/240 V
• Amperage Rating: 100 A
• Number of Poles: 2
• Interrupt Rating: 22kA@120 Vac / 22kA@120/240 Vac
• application: Thermal Magnetic
• Brand: ABB
• Current Rating: 100 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Plug-In Mount
• Smart Home Compatibility: Not Smart Home Compatible
• Voltage: 240 Volts
• Maximum Amperage: 100 A
• Trip Curve: Thermal Magnetic
• Interrupting Rating: 10000 A
• Poles: 2
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: GE Q-Line Load Centers, GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 6-1/0 AWG (Cu), 4-1/0 AWG (Al)
• Max Wire: 1/0 AWG
• Min Wire: 6 AWG (Cu), 4 AWG (Al)
• Available Options: Shunt Trip, Auxiliary Switch, Padlock Attachment
• Standards: UL 489, CSA C22.2 No. 5, HACR
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: HACR Rated, Common Trip, Quick-Make/Quick-Break
