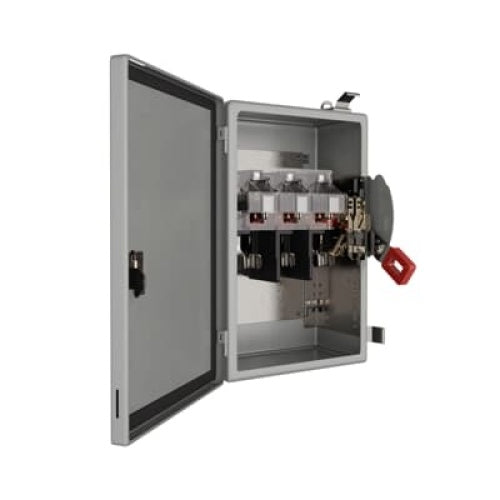

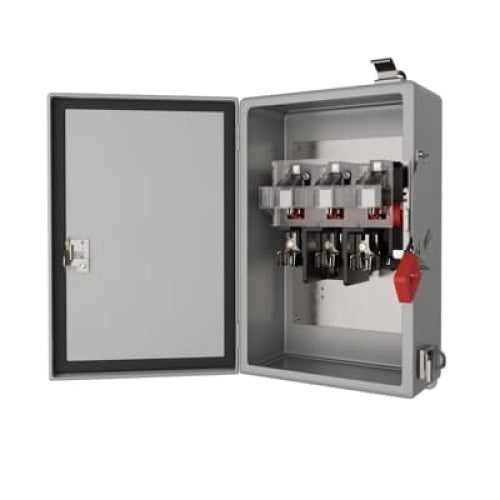

Abb TH4361R 30A 3P HD N3R 600V Fusible Switch

Product Description

The ABB TH4361R is a safety switch designed for residential, commercial, and industrial applications. This heavy-duty, 3-pole, 30A, 600V fusible switch comes with a NEMA 3R enclosure for outdoor use. It is suitable for environments such as cement foundries, steel mills, and processing plants.

• Amperage: 30 A
• Poles: 3
• Enclosure: NEMA 3R (Outdoor)
• UL and cUL Listed

Product Highlights

The ABB TH4361R fusible switch ensures safety and reliability for various applications. It is easy to install and built to withstand tough industrial environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TH4361R

Technical Specifications

• Category: Heavy Duty
• GO Schedule: S1
• Amperage: 30 A
• Poles: 3
• Wires: 3
• Fusing: Fusible
• Enclosure: NEMA 3R (Outdoor)
• Options: None
• Wire Range (Cu/Al): 12-2
• 240 Vac, Time Delay, 1-ph: 7,5 hp
• 480 Vac, NEC Std, 1-ph: 3 hp
• 480 Vac, NEC Std, 3-ph: 5 hp
• 480 Vac, Time Delay, 1-ph: 7,5 hp
• 480 Vac, Time Delay, 3-ph: 15 hp
• 600 Vac, NEC Std, 1-ph: 3 hp
• 600 Vac, NEC Std, 3-ph: 7,5 hp
• 600 Vac, Time Delay, 1-ph: 10 hp
• 600 Vac, Time Delay, 3-ph: 20 hp
• 250 Vdc: 5 hp
• cUL Listed: Yes
• UL Listed: Yes
• Brand: ABB
• Part Number #: TH4361R
• Actuator Type: Donut Handle
• Terminal Type: Line/Load Lug
• Type: Enclosed Heavy Duty Fusible
• Mounting type: 3-Point
• Application: For Heavy
• Standards: UL standard 98|CSA standard 22.2 no. 4-04|NEMA KS1 standard
• Current: 30 Amp
• Enclosure Disconnect Type: Heavy Duty Safety Switch
