Abb th3362 Fusible Heavy Duty Safety Switch 60A 600VAC

Product Description

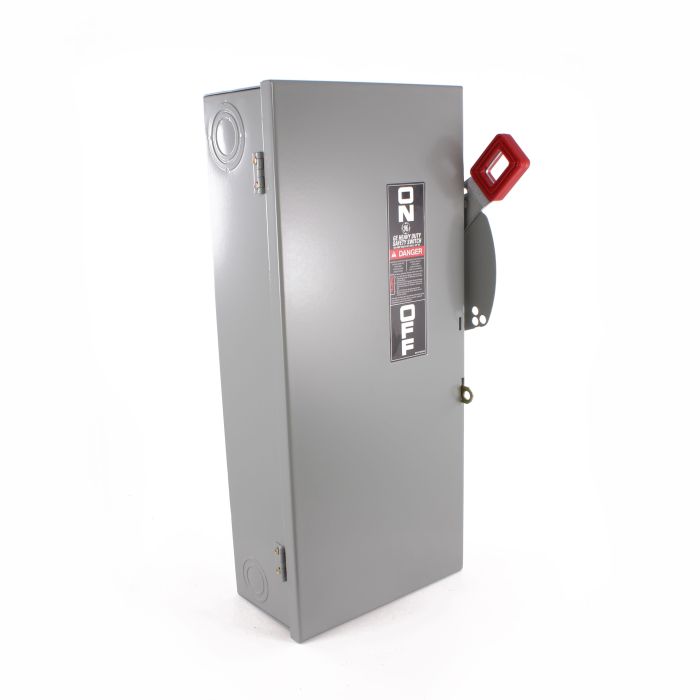

The ABB th3362 is a fusible, heavy-duty safety switch rated for 60 amps at 600 VAC in a 3-pole, 3-wire configuration. Part of the TH Series, it features a quick-make, quick-break mechanism and a handle actuator for reliable disconnection in commercial and industrial power distribution applications. The enclosure is NEMA 1 rated for surface mounting, and the unit carries a 200 kA short-circuit current rating. Conductor terminations are rated for 60/75 degrees C wiring. Licensed electricians perform installation in compliance with the National Electrical Code. The switch is listed to UL Standard 98 and certified to CSA Standard 22.2 No. 4-04 for enclosed and dead-front switches, and meets or exceeds NEMA KS1 requirements for Type HD enclosed switches.

The th3362 is intended for commercial and industrial installations where a reliable, code-compliant fusible disconnect is required. It is suitable for use as service equipment when installed in accordance with the National Electrical Code. The switch operates on 3-phase power at 50/60 Hz and supports up to 15 hp with standard fuses or 50 hp with time-delay fuses, making it appropriate for motor branch circuits, feeder disconnects, and equipment isolation points in industrial facilities and commercial buildings.

Key Features

• Fusible heavy-duty design rated 60A at 600 VAC with 200 kA short-circuit current rating
• Quick-make, quick-break mechanism for fast, reliable actuation
• NEMA 1 enclosure with surface mounting for indoor service equipment applications
• Full cover interlocks prevent access to live parts during normal operation
• Supports 15 hp with standard fuses or 50 hp with time-delay fuses on 3-phase circuits
• Listed to UL 98 and certified to CSA 22.2 No. 4-04; meets NEMA KS1 Type HD requirements

Compatibility

Designed as an OEM-style heavy-duty safety switch for 3-phase commercial and industrial distribution systems requiring a fusible disconnect rated at 600 VAC, 60A, NEMA 1 enclosure with surface mounting.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code and all applicable local codes. De-energize and lock out the upstream power source before installation or servicing. Verify conductor insulation temperature ratings are compatible with the 60/75 degrees C terminal rating before terminating wiring. Confirm fuse selection matches the load type — standard or time-delay — based on the connected horsepower rating.

Technical Specifications

• Amperage Rating: 60A
• Voltage Rating: 600 VAC
• Horsepower Rating: 15 hp (standard fuse) / 50 hp (time-delay fuse)
• Phase: 3-phase
• Frequency: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 3
• Short Circuit Current Rating: 200 kA
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Actuator Type: Handle
• Temperature Rating: 60/75 degrees C
• Dimensions (H x W x D): 21.3 inches x 9.1 inches x 5 inches
• Series: TH Series
• Type: Fusible Heavy Duty

Standard Information

• Brand: ABB
• Manufacturer Part Number: th3362
