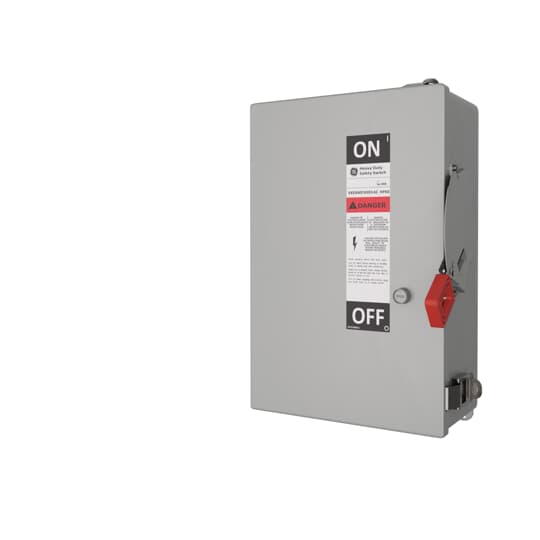

Abb th3224r fusible switch 200a 2 pole nema 3r

Product Description

The ABB TH3224R is designed for commercial and industrial applications where safety and high performance are essential. It is listed to UL standard 98 and certified to CSA standard 22.2 no. 4-04 for enclosed and dead front switches. Meets or exceeds NEMA KS1 standard for enclosed switches, type HD.

• Suitable for use as service equipment when installed in accordance with the National Electrical Code.
• Quick-make, quick-break mechanism.
• Full cover interlocks.

Product Highlights

This heavy-duty safety switch is reliable and easy to install, suitable for commercial and industrial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TH3224R
• Country of Origin: UKN

Technical Specifications

• Enclosure: NEMA 3R (Outdoor)
• Voltage Rating: 240 AC
• Amperage Rating: 200A
• Number of Poles: 2
• Category: Safety Switches / Disconnects
• Voltage: 240 AC
• Amperage: 200 A
• Poles: 2
• Wires: 3
• Fusing: Fusible
• Options: None
• Wire Range (Cu/Al): 2-250
• 240 Vac, NEC Std, 1-ph: 15 hp
• 250 Vdc: 40 hp
• GSA Compliance: Yes
• cUL Listed: Yes
• UL Listed: Yes
• Height: 31.70 in
• Depth: 5.40 in
• Width: 13.40 in
• Standard: Yes
• Application: Heavy
• Applications: Heavy
• Brand: ABB
• Enclosure Type: NEMA 3R
• Enclosure NEMA Rating: NEMA 3R
• Manufacturer: ABB
• Component: Fusible Disconnect Switch
• Current: 200 Amp
• Enclosure Disconnect Type: Heavy Duty Safety Switch
