ABB TH224MV TH224MV T-B B24 DBL LOCK SYS 1XPG21-3/4 Replacement TH224MV

Product Description

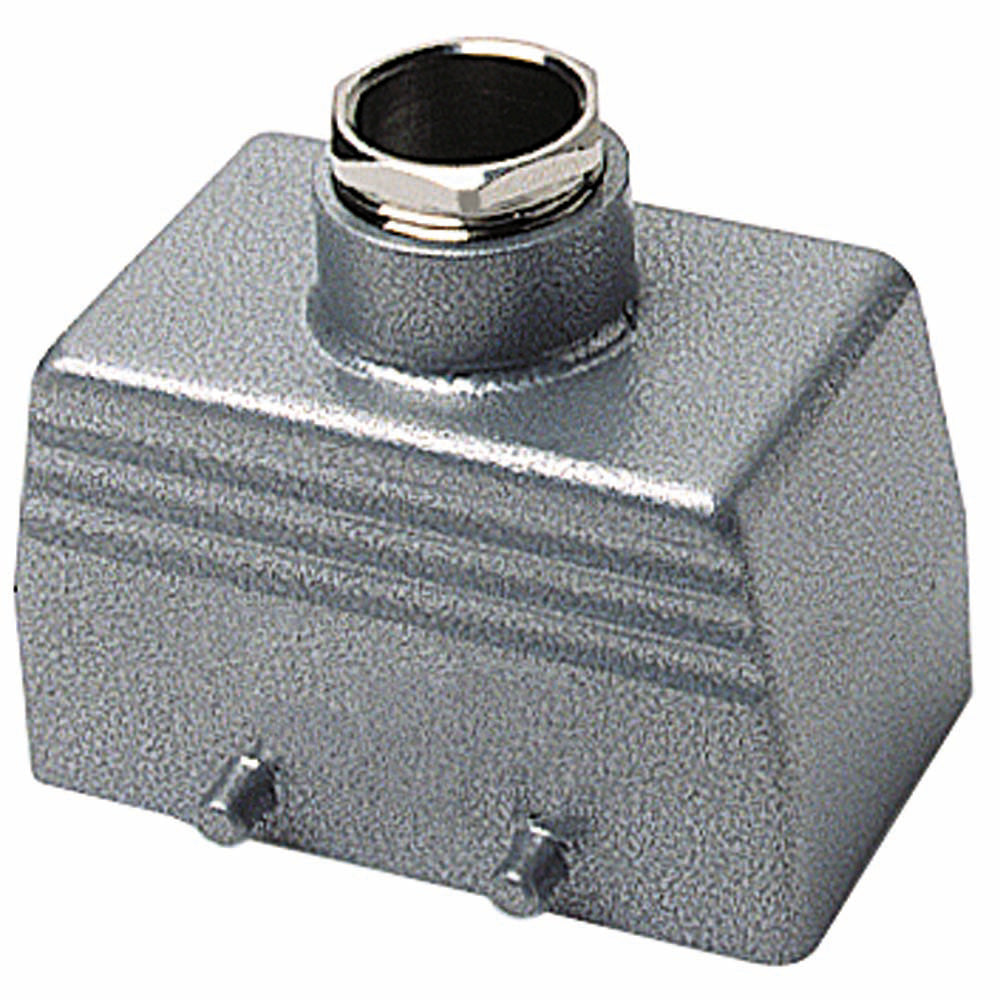

The ABB TH224MV is a Pos-E-Kon Double Post Hood designed for rectangular pin and sleeve connectors. This product features a top entry position and is suitable for standard mounting. It is compatible with B Series connectors and operates effectively in temperatures ranging from minus forty to two hundred fifty-seven degrees Fahrenheit.

• Die cast aluminum body for durability
• Equipped with gaskets for secure sealing
• Rated for sixteen amps and six hundred volts AC

Product Highlights

This double post hood ensures secure connections in electrical installations. Its robust construction and design allow for modular assembly at the customer site.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78620998717

Technical Specifications

• Entry Position: Top
• Entry Type: 1 x 3/4 in NPT
• Finish: Epoxy Powder Coated
• Includes: Gaskets
• Manufacturer Part Number: TH224MV
• Material: Die Cast Aluminum
• Mounting Type: Standard
• Series: B Series
• Specifications: 16 A, 600 VAC
• Standards/Approvals: CSA Certified, UL File No. E215386, IEC 529, VDE 0470
• Suitable For Use With: B Series Connector
• Temperature Rating: -40 to 257 deg F
