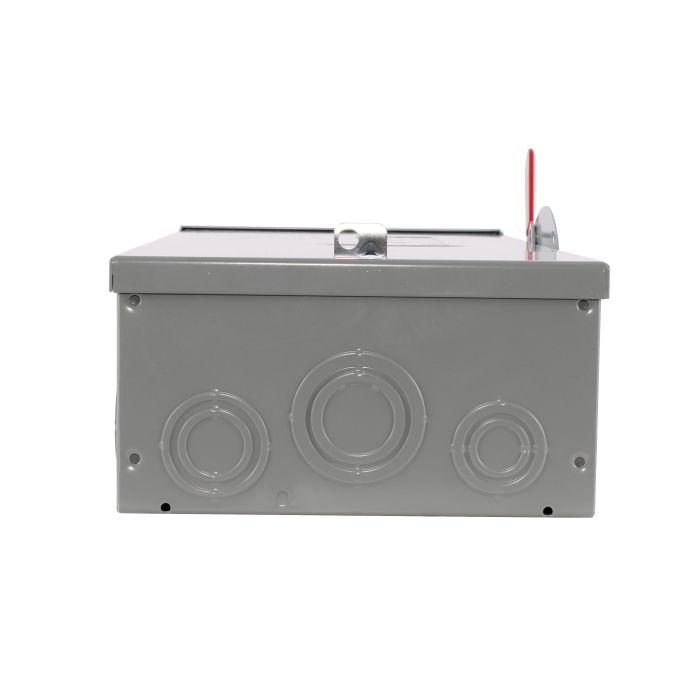

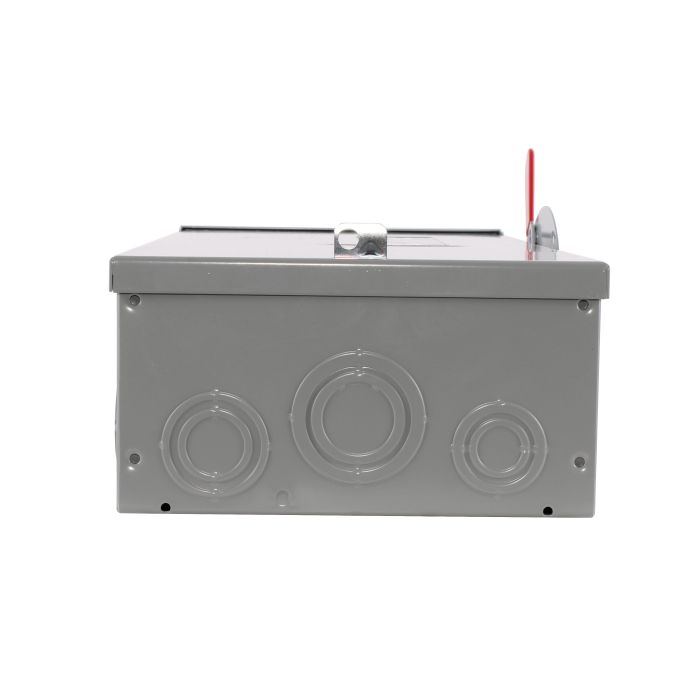

Abb tg4323r Fusible Safety Switch 100A 240VAC 3P

Product Description

The ABB tg4323r is a fusible general-duty safety switch rated for 100 amps at 240 volts AC, designed for use in residential and light commercial electrical distribution applications. Part of the TG Series, this 3-pole, 4-wire switch features a quick-make, quick-break handle actuator mechanism and a NEMA 3R enclosure for outdoor or damp-location service. It carries a short circuit current rating of 100 kA and a horsepower rating of 7-1/2 hp with standard fuse or 15 hp with time-delay fuse. Licensed electricians install this switch as service equipment or feeder disconnect in accordance with the National Electrical Code.

This switch is suited for residential service entrances and light commercial feeder applications where general-duty performance is sufficient and severe industrial duty is not required. Surface mounting on a wall or equipment panel keeps installation straightforward. The 60/75 degrees C conductor rating supports use with both 60-degree and 75-degree rated wire. Single-phase, 50/60 Hz frequency compatibility makes it appropriate for standard North American utility service as well as facilities with variable-frequency supply.

Key Features

• 100A, 240 VAC fusible general-duty safety switch for residential and light commercial use
• 3-pole, 4-wire configuration with quick-make, quick-break handle actuator
• NEMA 3R enclosure rated for outdoor and damp locations
• 100 kA short circuit current rating
• Dual horsepower rating: 7-1/2 hp standard fuse, 15 hp time-delay fuse
• Listed to UL Standard 98 and certified to CSA Standard 22.2 No. 4-04 for enclosed and dead-front switches
• Meets or exceeds NEMA KS1 standard for enclosed switches, Type GD

Compatibility

Suitable for use as service equipment when installed in accordance with the National Electrical Code. Designed for residential and light commercial applications where general-duty enclosed switch performance is required. Fusible and non-fusible switch variants are available within the TG Series.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code and applicable local codes. De-energize the upstream service conductors and verify absence of voltage before beginning any wiring work. Surface-mount the enclosure securely to a structural wall or panel using fasteners appropriate for the substrate. Conductor selection must comply with the 60/75 degrees C temperature rating of the terminals.

Technical Specifications

• Amperage Rating: 100 A
• Voltage Rating: 240 VAC
• Horsepower Rating: 7-1/2 hp standard fuse / 15 hp time-delay fuse
• Number of Poles: 3
• Number of Wires: 4
• Phase: 1
• Frequency Rating: 50/60 Hz
• Short Circuit Current Rating: 100 kA
• Enclosure Type: NEMA 3R
• Mounting Type: Surface
• Actuator Type: Handle
• Temperature Rating: 60/75 degrees C
• Dimensions (H x W x D): 21.05 inches x 9.3 inches x 5 inches
• Material: Steel
• Series: TG Series
• Type: Fusible General Duty

Standard Information

• Brand: ABB
• Manufacturer Part Number: tg4323r
