Abb TG3224 Switch Saf 240VAC 200A 2 1 50/60HZ 3 HDL

Product Description

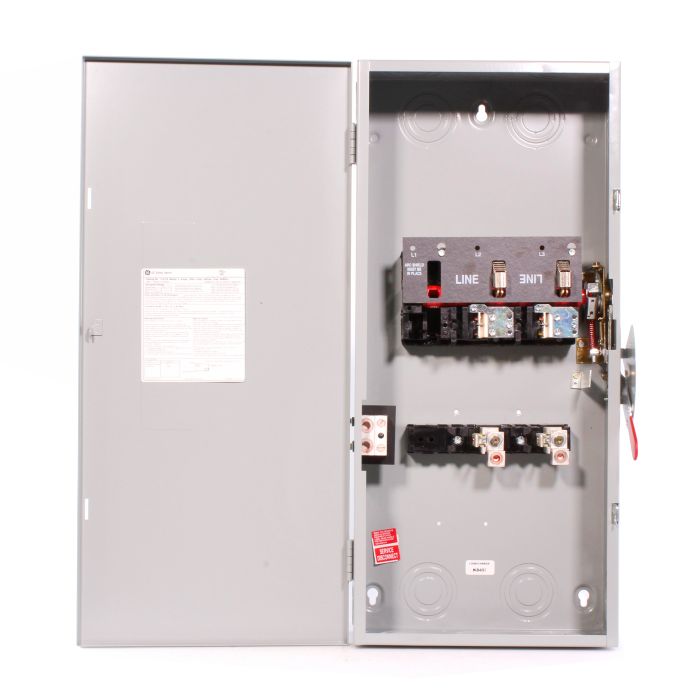

The ABB TG3224 is a TG Series fusible general duty safety switch designed for residential and light commercial applications. Rated at 240 VAC and 200 A, it supports 15 hp Standard Fuse/15 hp Time Delay. This 2-pole switch features a quick-make, quick-break mechanism for positive on/off indication.

• Fusible safety switch
• Features a general duty
• Equipped with a quick-make, quick-break mechanism

Product Highlights

The ABB TG3224 safety switch is suitable for use as service equipment and meets NEMA KS1 standards. It has a NEMA 1 enclosure and is designed for surface mounting.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TG3224

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 200 A
• Horsepower: 15 hp Standard Fuse/15 hp Time Delay
• Poles: 2
• Frequency Rating: 50/60 Hz
• Series: TG Series
• Phase: 1
• Number of Wires: 3
• Short Circuit Current Rating: 100 kA
• Actuator Type: Handle
• Enclosure Type: NEMA 1
• Mounting Type: Surface
• Temperature Rating: 60/75 deg C
• Material: Steel
• Manufacturer: ABB Electrification
• Type: Fusible General Duty
