Product Description

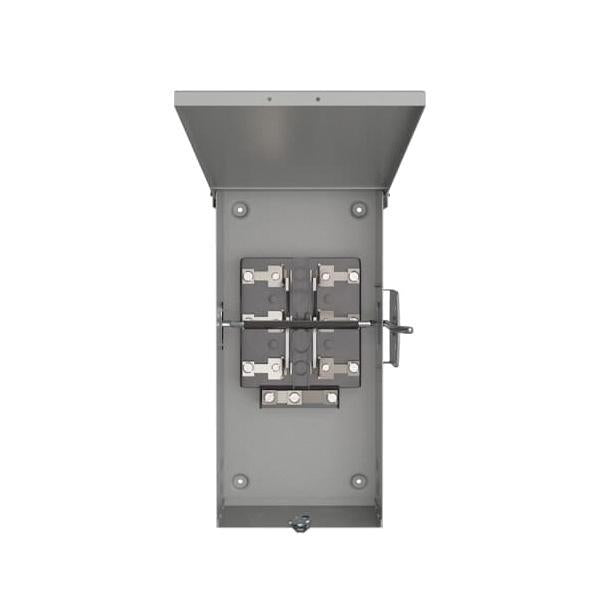

The ABB TG3221 GE Spec-Setter Safety Switch is a fusible general duty safety switch. Rated at 240 VAC and 30 A, it is suitable for residential and light commercial purposes. It features a direct drive, quick-make, quick-break mechanism for positive on/off indication and a self-leveling, 3-point mounting system.
- Safety switches from ABB
- Suitable for residential and light commercial purposes
- Direct drive, quick-make, quick-break mechanism
Product Highlights
This ABB safety switch is reliable and easy to install, suitable for electrical distribution and control applications.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TG3221
Technical Specifications
-
Voltage: 240 VAC
-
Amperage: 30 A
-
Horsepower: 1.5 hp Standard Fuse/3 hp Time Delay
-
Poles: 2
-
Category: General Duty
-
Wires: 3
-
Fusing: Fusible
-
Enclosure: NEMA 1 (Indoor)
-
Wire Range (Cu/Al): 12-8 AL
14-8 CU
-
240 Vac, NEC Std, 1-ph: 1.5
-
240 Vac, Time Delay, 1-ph: 3
-
250 Vdc: 5
-
cUL Listed: Yes
-
UL Listed: Yes
-
Actuator Type: Handle
-
Frequency Rating: 50/60 Hz
-
Number of Poles: 2
-
Number of Wires: 3
-
Phase: 1
-
Series: TG Series
-
Short Circuit Current Rating (kA): 100 kA
-
Temperature Rating (Degrees F): 60/75 deg C
-
Type: Fusible General Duty
-
Material: Steel
-
Mounting type: Surface
-
Manufacturer Name: ABB
-
Disconnect Type: Fusible
-
Duty Rating: General
-
Neutral Type: No
-
Current Rating: 30 Amp
-
Fuse Provision: Fusible
-
DC Voltage Rating: 125/250 Volt
-
Fuse Type: Cartridge, Class H/K/R
-
AC Voltage Rating: 240 Volt
-
Voltage Rating: 240 VAC
