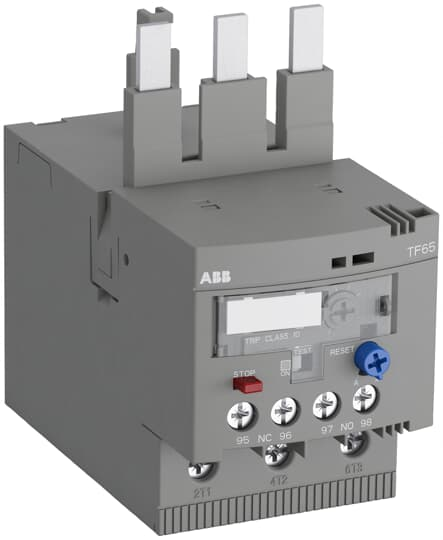

ABB TF65-67 Thermal Overload Relay 690 VAC/440 VDC (CLASS-10) 590065

Product Description

The ABB TF65-67 thermal overload relay is a crucial electromechanical protection device designed for the main circuit. It provides reliable protection for motors against overload and phase failure. The device features a trip class of 10, ensuring quick response during overload conditions.

• Fast protection for motors during overload or phase failure
• Temperature compensation for consistent performance
• Allows for automatic or manual reset

Product Highlights

This thermal overload relay can be directly connected to block contactors and is designed for easy mounting. It includes an indication function to signal trips.

Product Information

Standard Information

• Brand: ABB
• MPN: TF65-67

Technical Specifications

• Type: Overloads
• Voltage: Main Circuit 690 VAC / 440 VDC, Auxiliary Circuit 600 Volt
• Amperage: 57-67 Amp
• Standard: EN 60947-1, IEC
• Wire Size: (1) 12-2 AWG, (2) 12-6 AWG Stranded/Flexible
• Power Rating: 2.5 - 3.4 W
• Temperature Rating: -25 to 60 degrees C
• Number of Poles: 3 Pole
