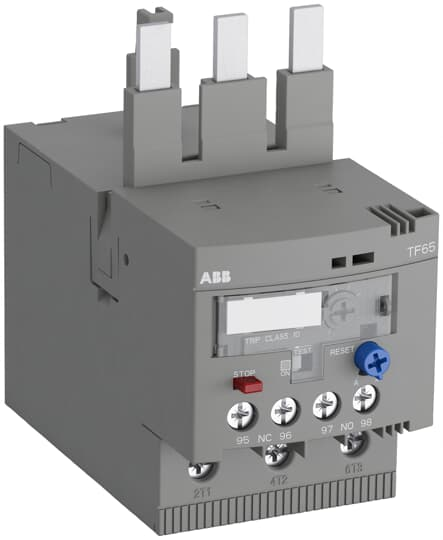

ABB TF65-53 Thermal Overload Relay 44-53A Economic

Product Description

The ABB TF65-53 is a thermal overload relay designed for protection in main circuits. This electromechanical device provides quick and reliable protection for motors against overloads and phase failures. It features a trip class of 10.

• Temperature compensation for accurate reading.
• Selectable automatic or manual reset functionality.
• Trip-free mechanism to avoid accidental shut down.

Product Highlights

The device connects directly to block contactors and includes features like trip indication and a stop function. It is compatible with DIN rail mounting and available single mounting kits as accessories.

Product Information

Standard Information

• Brand: ABB
• MPN: TF65-53

Technical Specifications

• Amperage Rating: 44 to 53 A
• Contact Form: 1NC-1NO
• Contact Rating: 3 A at 120 VAC
• Dimensions: 2.16 inches W x 4.21 inches D x 3.45 inches H
• Enclosure: IP10/IP20
• Frequency Rating: 50/60 Hz
• Mounting Type: DIN Rail
• Temperature Rating: -40 to 70 degrees C
