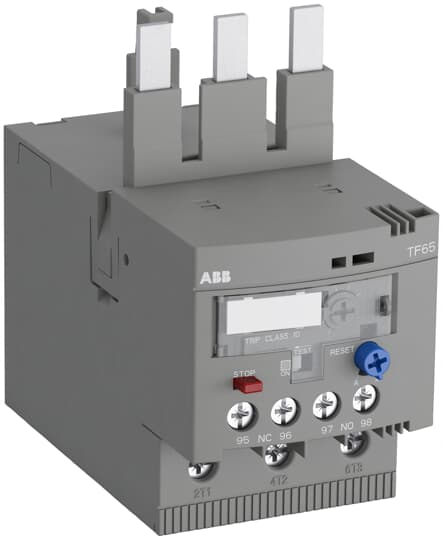

ABB TF65-40 Thermal Overload Relay 30-40 Amp Class 10

Product Description

The ABB TF65-40 thermal overload relay is designed to deliver reliable electromechanical protection for electric motors. It protects against overloads and phase failures, ensuring safe operation in industrial applications. With a trip class of 10, this relay features both automatic and manual reset options, temperature compensation, and trip-free functionality.

• Trip class: 10
• Voltage rating: Main Circuit 690 VAC / 440 VDC
• Amperage range: 30-40 Amp

Product Highlights

Ideal for protecting three-phase motors in various industrial settings.

Product Information

Standard Information

• Manufacturer: ABB
• Product Type: Overload Relay

Technical Specifications

• Voltage Rating: Auxiliary Circuit 600 V AC / DC
• Wire Size: 12-2 AWG / 12-6 AWG stranded or flexible
• Temperature Rating: -25 to 60 degrees C
• Contact Configuration: 1 NO, 1 NC
• Enclosure Rating: IP10, IP20
• Product UPC: 88861400148
• Dimensions: Approximately 82x110x108 mm
• Trip Class: Class 10
