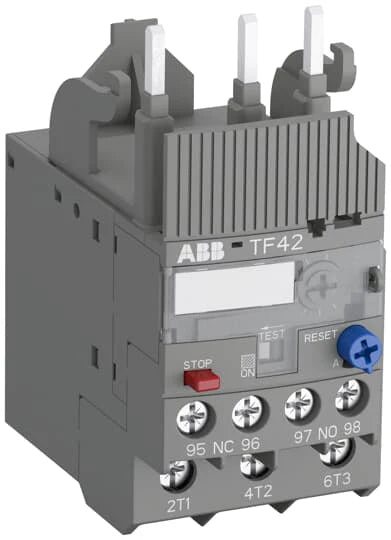

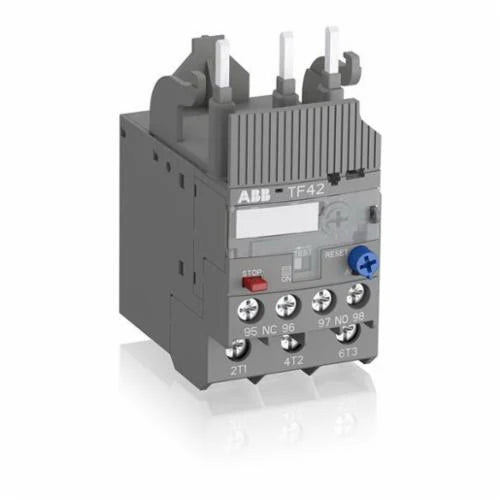

ABB TF42-7.6 Overload Relay 5.7-7.6A IEC Trip Class 10

Product Description

The ABB TF42-7.6 is an overload relay designed for reliable motor protection. It features a current setting range of 5.7 to 7.6 amperes. Ideal for controlling three-phase motors, this thermal overload relay provides essential safeguards against overload and phase failure situations.

• Overload Protection: Provides trips to protect motors.
• IEC Compliance: Meets international standards for electrical equipment.
• Versatile Applications: Suitable for various motor control operations.

Product Highlights

This device offers a trip class of 10, enhancing its effectiveness in motor protection scenarios.

Product Information

Standard Information

• Manufacturer: ABB
• Part Number: 530968

Technical Specifications

• Type: Overloads
• Amperage: 5.7-7.6 Amp
• Voltage Rating: Main Circuit 690 VAC/VDC, Auxiliary Circuit 600 Volt
• Number of Poles: 3 Pole
• Temperature Rating: -25 to 60 degrees C
• Wire Size: 18-10 AWG Stranded/Flexible
• Enclosure Type: IP20
• Trip Class: Class 10
