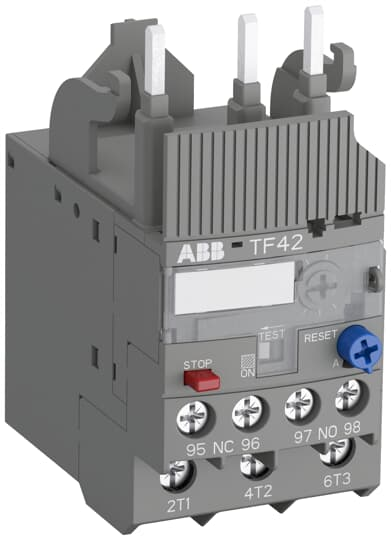

ABB TF42-20 Thermal Overload Relay Manual/Auto Reset 3-Pole 16-20 Amp

Product Description

Protect your motor applications with the ABB TF42-20 Thermal Overload Relay. Designed for robust performance, the relay features a 3-pole configuration and an adjustable 16-20 amp setting range, suitable for various industrial applications.

• Manual/Auto reset options provide flexibility in operation.
• Compact design makes installation simple in space-restricted areas.
• IP20 enclosure provides necessary protection against solid objects.

Product Highlights

This overload relay ensures continuous operation and safety with its thermal bi-metallic trip mechanism and a Class 10 trip classification.

Product Information

Standard Information

• GTIN: 00804325558631
• Voltage: Main Circuit - 690 VAC/VDC, Auxiliary Circuit - 600 Volt

Technical Specifications

• Type: Manual/Auto Reset
• Amperage: 16-20 Amp
• Terminal Type: Screw
• Wire Size: 18-10 AWG
• Temperature Rating: -25 to 60 degrees Celsius
• Enclosure Type: IP20
• Number of Poles: 3 Pole
• Standard: EN 60947-1IEC, EN 60947-4-1IEC, EN 60947-5-1UL 60947-1UL 60947-4-1, IEC
