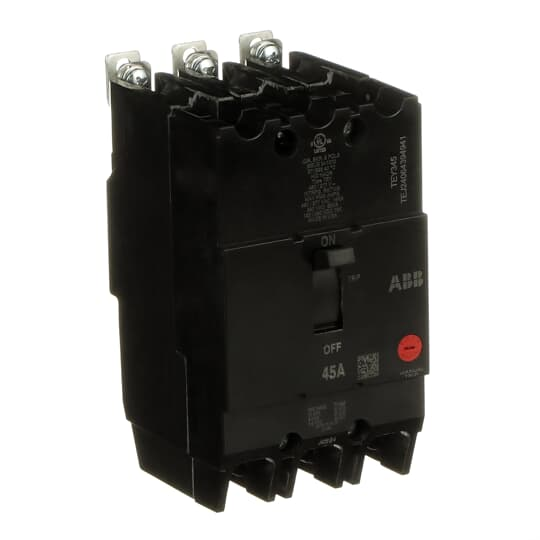

Abb tey345 circuit breaker tey 3p 45a

Product Description

The ABB TEY345 Circuit Breaker TEY 3P 45A is UL listed for HACR (Heating, Air Conditioning, Refrigeration) and HID (high intensity discharge) applications. Designed with a thermal magnetic trip, this 3-pole, 45A circuit breaker ensures optimal protection and performance. It features a noninterchangeable trip and a bolt-on design for secure and stable installation.

• UL listed HACR (Heating, Air Conditioning, Refrigeration)
• UL listed for HID (high intensity discharge)
• Thermal Magnetic Trip

Product Highlights

The ABB TEY345 is ideal for managing electrical loads safely and effectively in various settings.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TEY345

Technical Specifications

• Category: Lighting Panel Circuit Breakers
• Poles: 3
• Amperage: 45 A
• 480/277 Vac Interrupting Rating: 14 KAIC
• Wire Range (Cu/Al): 10-4 Cu/10-4 Al
• GSA Compliance: No
• Number Of Poles: 3
• Amperage Rating: 45A
• Connection: 10-4 Cu/10-4 Al
• Amps: 45
• Family / Style: E150
• Interrupt Rating AC: 14 kA
• Mounting: Bolt On
• Volts AC: 277, 480
