Product Description

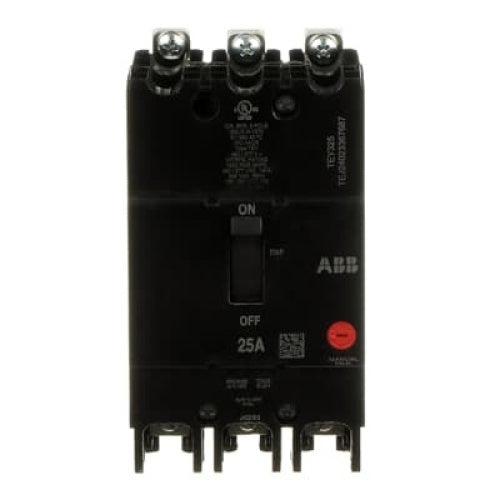

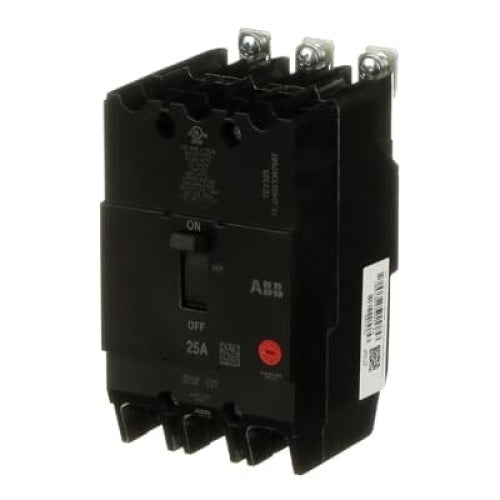

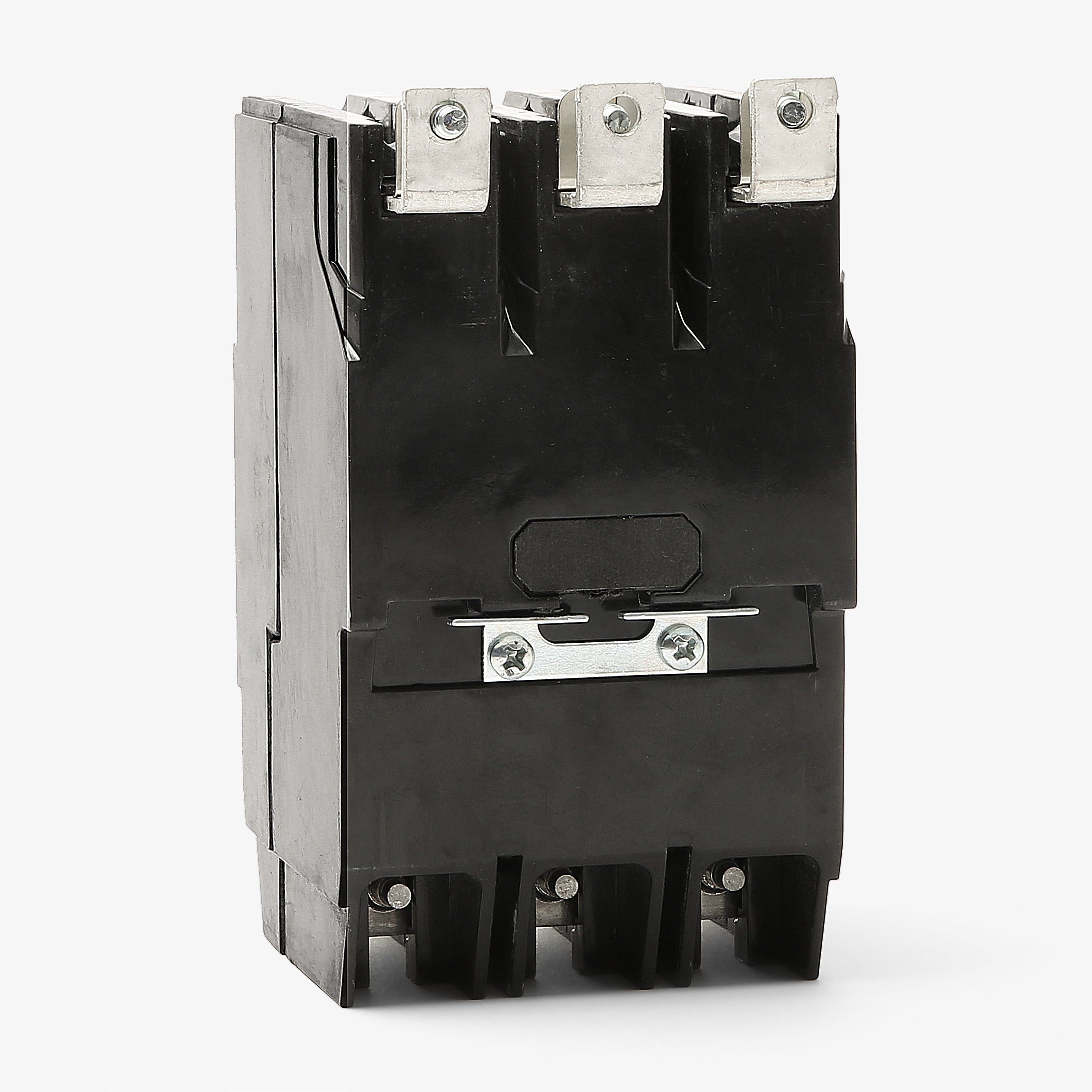

The ABB TEY325 is a one-inch wide per pole, compact, bolt-on circuit breaker for use on grounded 480Y/277 Vac systems. It features Quick-make / Quick-break mechanisms and easy to spot trip indication. Suitable for varied applications as a lug-lug breaker and installs into GE A-Series lighting panelboards. This thermal-magnetic breaker is HACR and HID rated.
- 3-pole
- 25A
- Bolt-on mounting style
Product Highlights
The ABB TEY325 circuit breaker delivers dependable long-time and instantaneous (LI) trip functions. It features lug terminals for secure wire connections.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TEY325
Technical Specifications
-
Category: Lighting Panel Circuit Breakers
-
Product Line: TEY / Q-Line (Bolt-On)
-
GO Schedule: EY
-
Trip Style: Non-Interchangeable
-
Poles: 3
-
Amperage: 25 A
-
System Voltage: 480 Vac
-
Frame Type: TEY
-
120 Vac Interrupting Rating: 65 KAIC
-
120/240 Vac Interrupting Rating: 65 KAIC
-
240 Vac Interrupting Rating: 65 KAIC
-
277 Vac Interrupting Rating: 14 KAIC
-
Trip Function: LI
-
Continuous Current Rated: Standard
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Current Metering: No
-
Protective Relays: No
-
Special Markings: HACR, HID
-
Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
-
GSA Compliance: No
-
UL File #: E11592
-
CSA File#: LR57114
-
Environmental product declaration: No Declaration Needed
-
Brand: ABB / General Electric
-
Series: TEY
-
Part Number: TEY325
-
Voltage: 480 Volts
-
AIC Rating: 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC
-
Mounting Style: Bolt-On
-
Terminal Type: Lugs
-
For Use With: GE A-Series Lighting Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 14-8 AWG (Cu), 12-8 AWG (Al)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG (Cu), 12 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment
-
Accessories: None included
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, HACR, HID, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, HID Rated, Common Trip, Non-Interchangeable Trip, Quick-Make/Quick-Break
-
Current Rating: 25 Amps
-
Circuit Breaker Type: Standard
-
Mounting Type: Pole Mount
-
Number Of Poles: 3
-
Amperage (Molded Case Breaker): 25 Amp
-
Poles (Molded Case Breaker): Three Pole
-
Manufacturer: ABB
-
Component: Molded Case Circuit Breaker
