Product Description

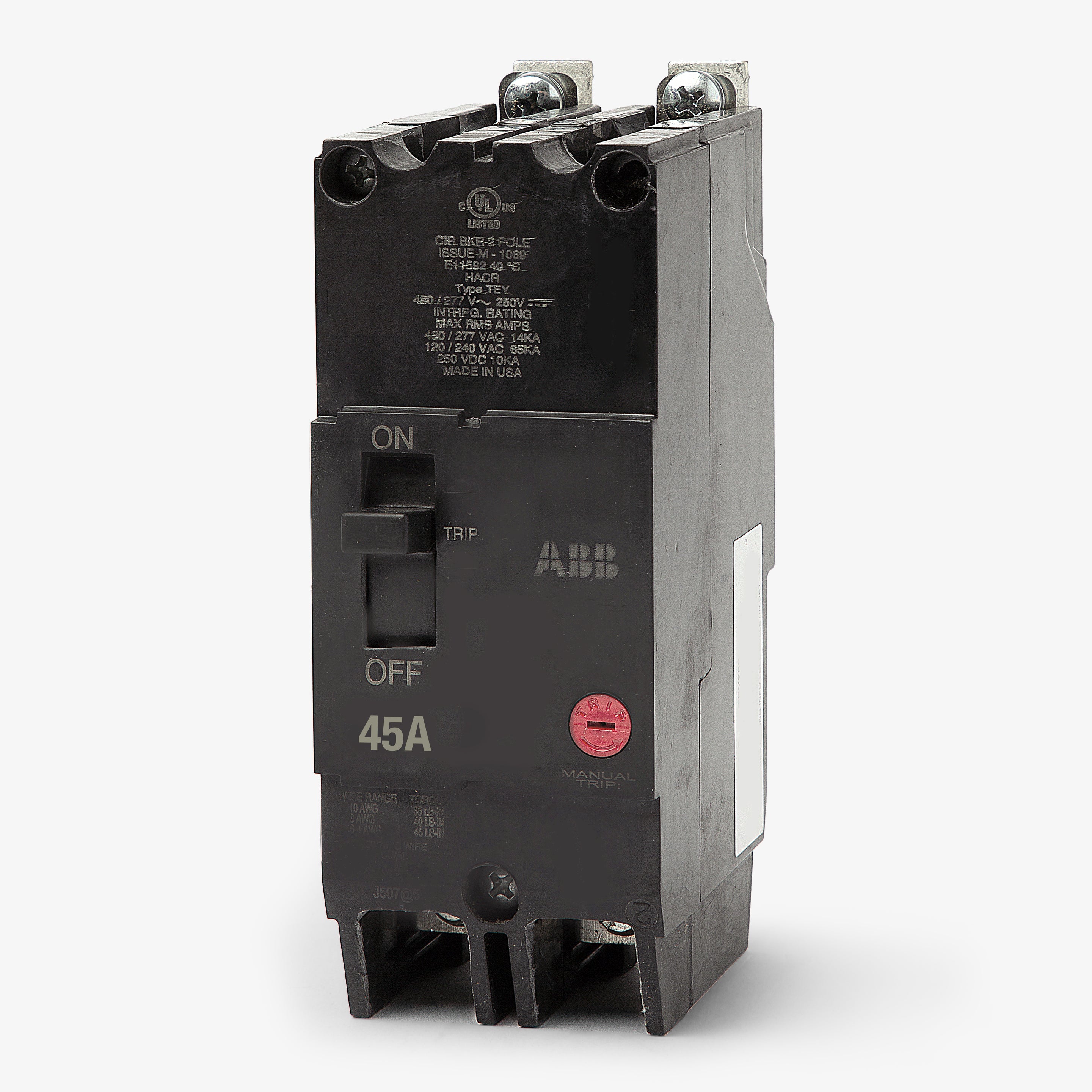

The ABB TEY245 is a 45A thermal-magnetic breaker designed to handle demanding industrial loads, delivering consistent performance in a compact footprint. It is designed for 120/240VAC and 480Y/277VAC applications. The TEY245 utilizes a sturdy bolt-on configuration that mounts into GE A-Series panelboards.
- 45A thermal-magnetic breaker
- Compact footprint
- Designed for 120/240VAC and 480Y/277VAC applications
Product Highlights
This breaker accommodates 10-4 AWG copper or 8-4 AWG aluminum conductors and has a 14kAIC rating at 480Y/277V. The unit is HACR and HID rated for air conditioning and lighting circuits.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TEY245
Technical Specifications
-
Brand: ABB / General Electric
-
Series: TEY
-
Part Number: TEY245
-
Amperage: 45A
-
Voltage: 120VAC, 240VAC, 480Y/277VAC, 250VDC, 120/240VAC
-
Poles: 2
-
Phase: 1
-
AIC Rating: 65kA @ 120VAC, 65kA @ 240VAC, 14kA @ 480Y/277VAC, 10kA @ 250VDC, 65kA @ 120/240VAC
-

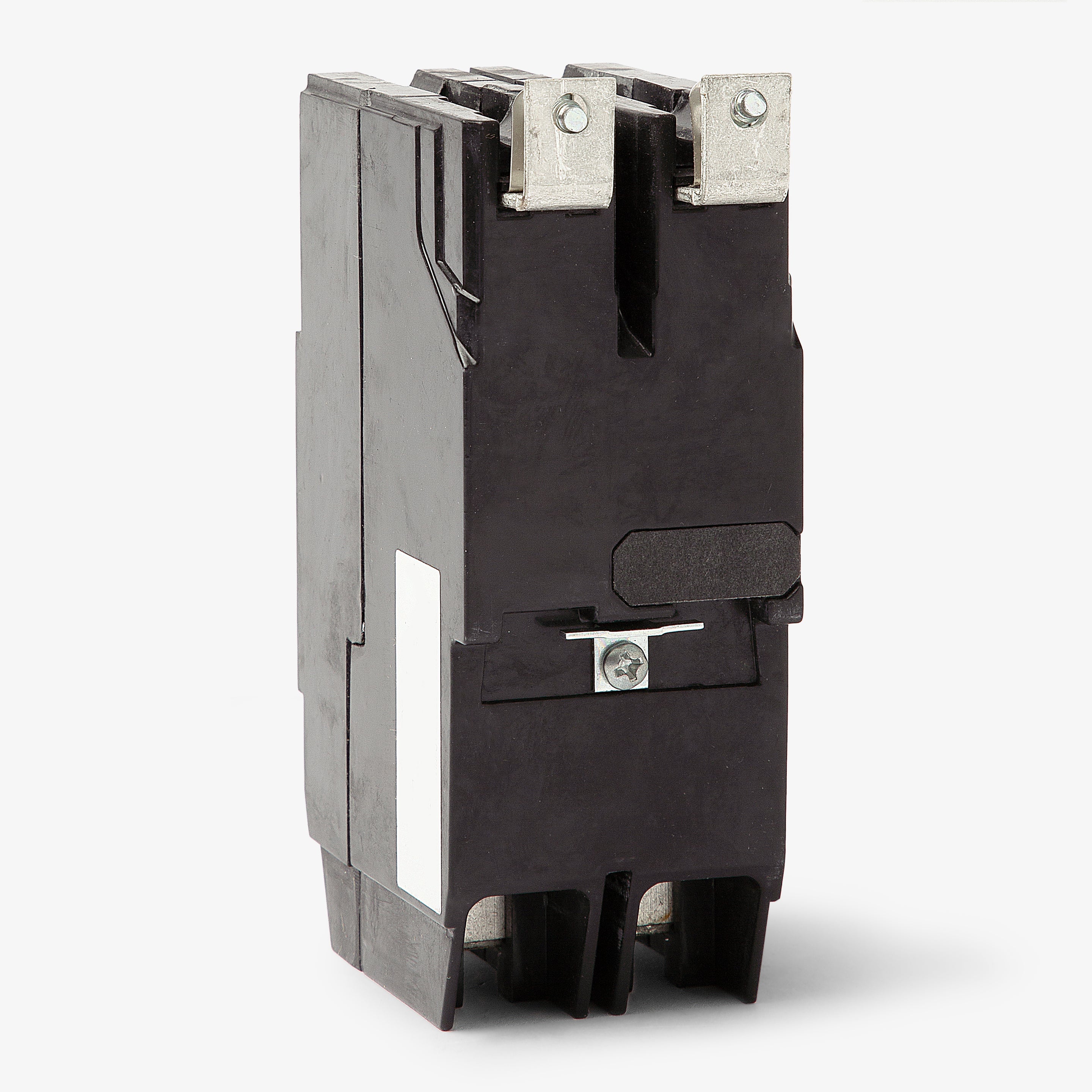

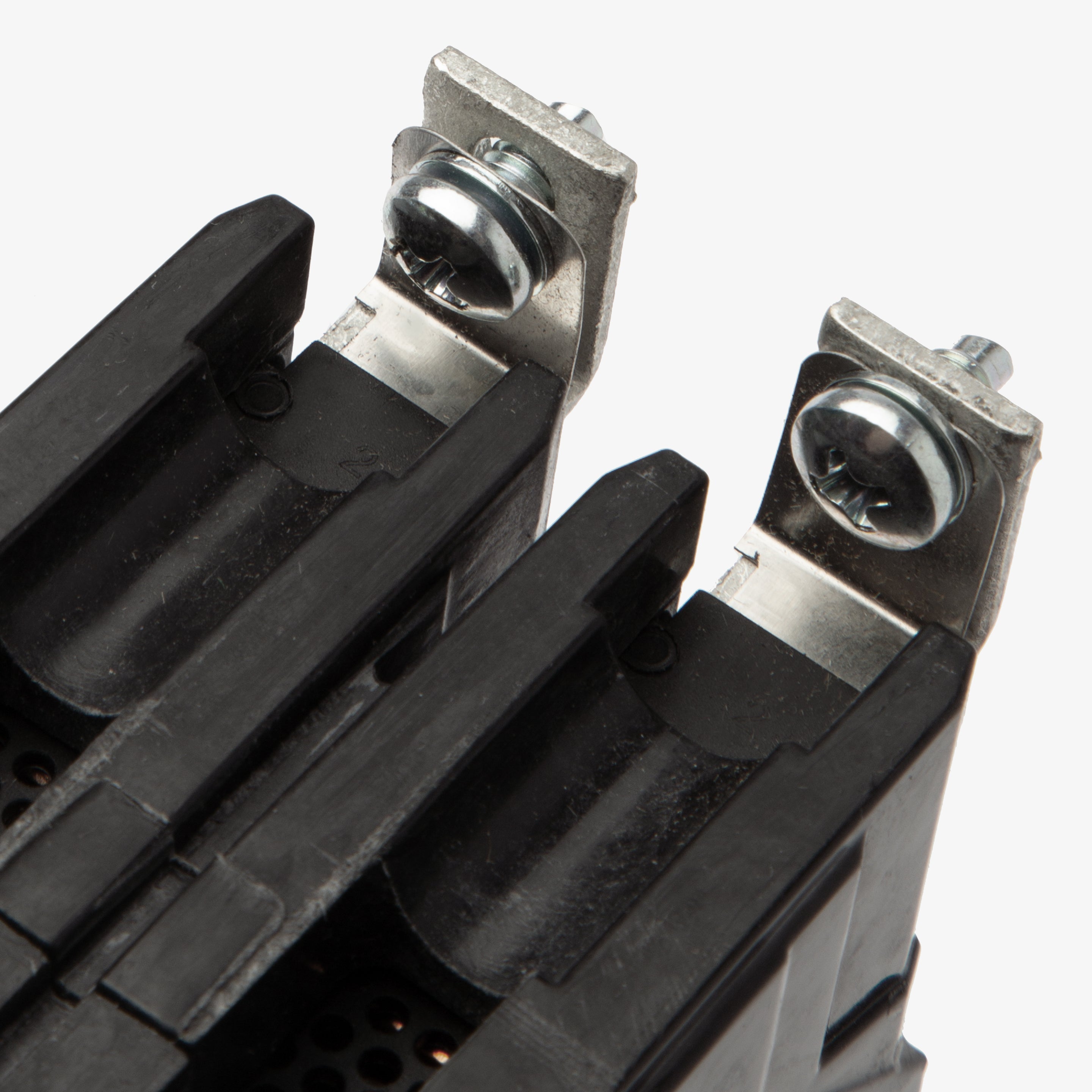

Mounting Style: Bolt-On
-

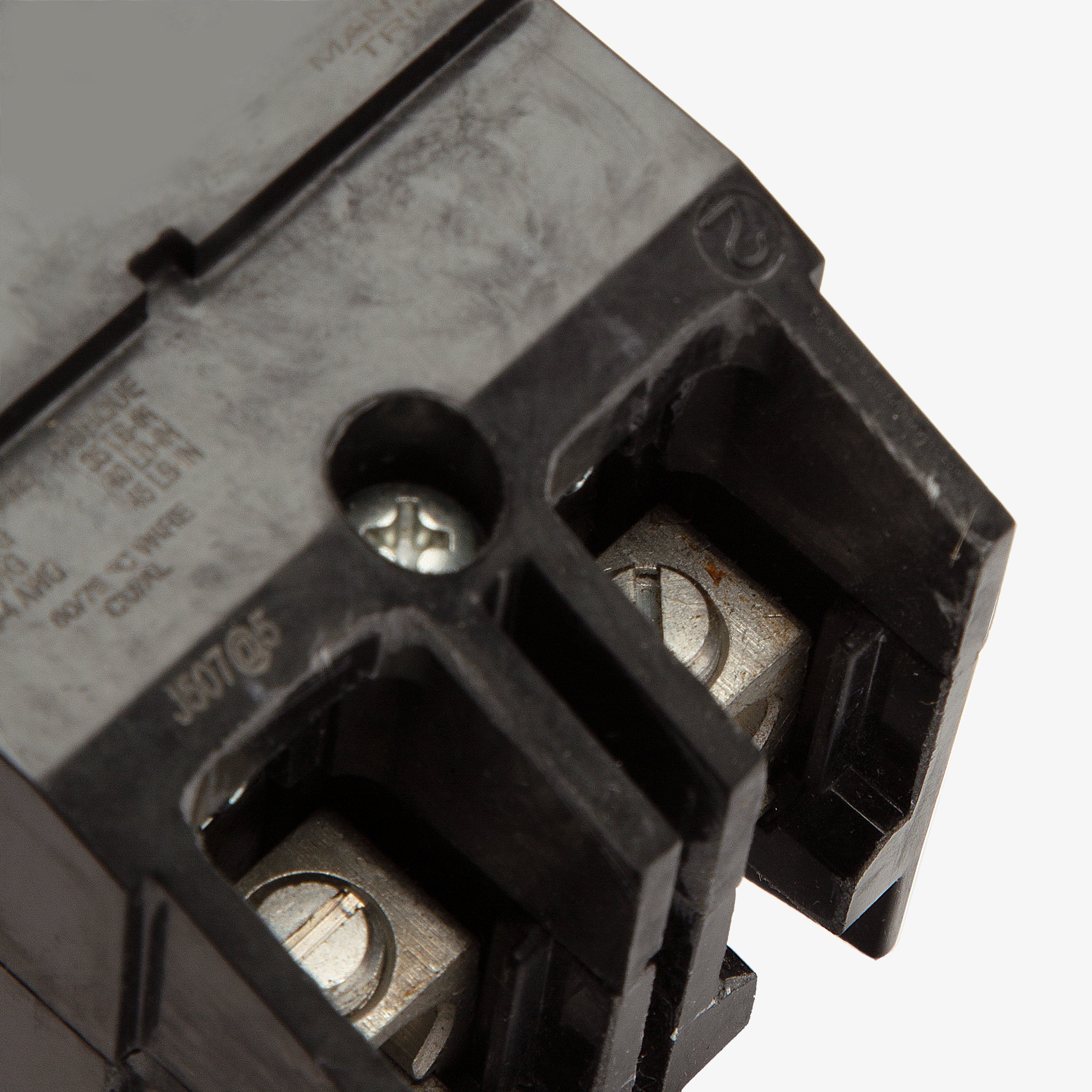

Terminal Type: Lugs
-
For Use With: GE A-Series Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 10-4 AWG (Cu), 8-4 AWG (Al)
-
Max Wire: 4 AWG
-
Min Wire: 10 AWG (Cu), 8 AWG (Al)
-
Available Options: Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment
-
Accessories: Load Side Lugs Included
-
Standards: CSA C22.2 No. 5, UL 489
-
Approval: CSA, HACR, HID, UL
-
Temp Rating: 40C
-
Construction Features: Common Trip, HACR Rated, HID Rated, Non-Interchangeable Trip, Quick-Make/Quick-Break
-
Volts AC: 480, 277
-
Mounting: Bolt On
-
Interrupt Rating AC: 14 kA
-
Category: Lighting Panel Circuit Breakers
-
Product Line: TEY / Q-Line (Bolt-On)
-
GO Schedule: EB
-
Trip Style: Non-Interchangeable
-
System Voltage: 120 Vac
120/240 Vac
240 Vac
277 Vac
-
Frame Type: TEY
-
120 Vac Interrupting Rating: 65 KAIC
-
120/240 Vac Interrupting Rating: 65 KAIC
-
240 Vac Interrupting Rating: 65 KAIC
-
277 Vac Interrupting Rating: 14 KAIC
-
Continuous Current Rated: Standard
-
Suitable for Reverse Feed: Yes
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Current Metering: No
-
Protective Relays: No
-
Special Markings: HACR
HID
-
Wire Range (Cu/Al): 14-8 kcmil / 12-8 kcmil
