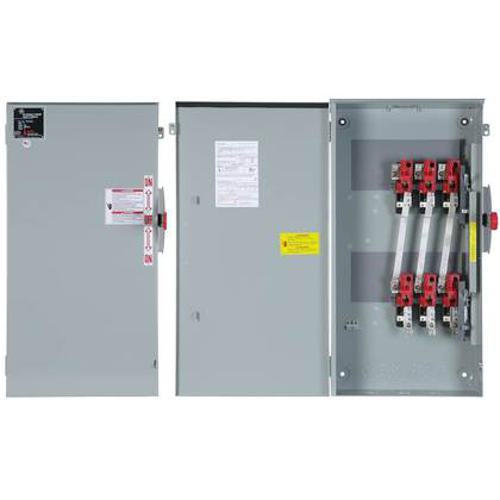

Abb TC72367 800A 3P HD N1 600V Fusible Safety Switch

Product Description

The ABB TC72367 safety switch is designed to get the job done right. This heavy-duty, fusible switch is suitable for commercial and industrial applications. It is rated for 800A, 600V AC, and has 3 poles. The NEMA 1 enclosure makes it suitable for indoor use.

• Rugged
• Reliable
• Easy-to-install

Product Highlights

The ABB TC72367 is a heavy-duty fusible safety switch with a NEMA 1 enclosure, ideal for indoor commercial and industrial applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: TC72367

Technical Specifications

• Category: Heavy Duty
• Voltage: 600 AC
• Amperage: 800 A
• Poles: 3
• Wires: 3
• Fusing: Fusible
• Enclosure: NEMA 1 (Indoor)
• Wire Range (Cu/Al): (3) 2-600 or (6) 1/0-250
• cUL Listed: Yes
• UL Listed: Yes
• Height: 61.50 in
• Depth: 11.90 in
• Width: 40.80 in
• Manufacturer: ABB
• Component: Fusible Disconnect Switch
• Enclosure Disconnect Type: Heavy Duty Safety Switch
• Phase: 3
• Mounting Type: Surface
• Interrupting Rating: 200kAIC at 600V
• Duty Rating: Heavy Duty
• Configuration: Single
• Action: Double Throw
• Contact Configuration: TPDT
