Product Description

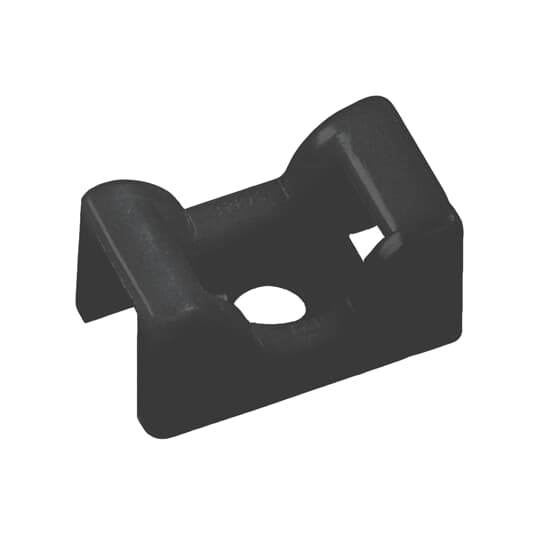

The ABB TC5142X is a Saddle Support Mounting Base made from heat stabilized black polyamide (Nylon 6.6). It is designed to support cable ties efficiently. This product can handle temperatures up to eighty-five degrees Celsius (185 degrees Fahrenheit). The dimensions include a base length of approximately twenty-three point four two millimeters (0.922 inches) and a width of fourteen point twenty-nine millimeters (0.563 inches).
- Supports cable ties up to zero point three zero one inches maximum tie width.
- Mounting type is threaded with a #10 screw.
- Available in a pack of one hundred.
Product Highlights
Durable and versatile, suitable for a range of applications.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: TC5142X
Technical Specifications
-
Operating Temperature: -40 to 185 degrees Fahrenheit
-
Material: Nylon/Polyamide 6.6
-
Color: Black
-
Base Length: 0.922 inches
-
Base Width: 0.563 inches
-
Maximum Tie Width: 0.301 inches
-
Mounting Type: Screw
-
Sub Brand: Ty-Rap
