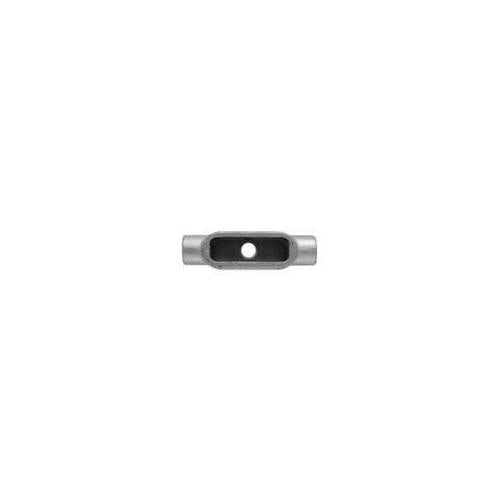

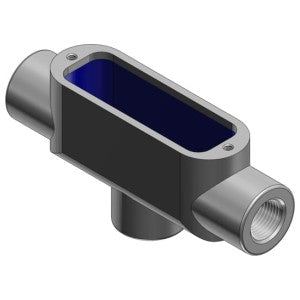

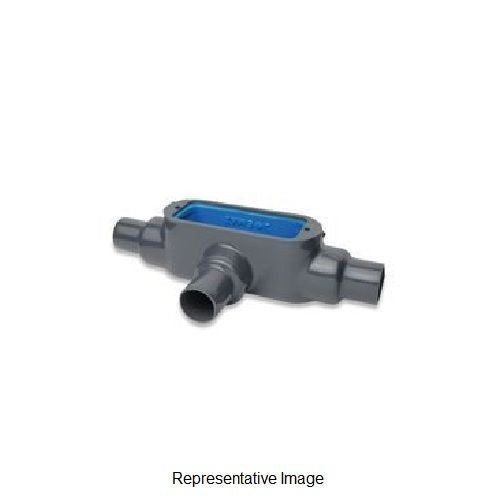

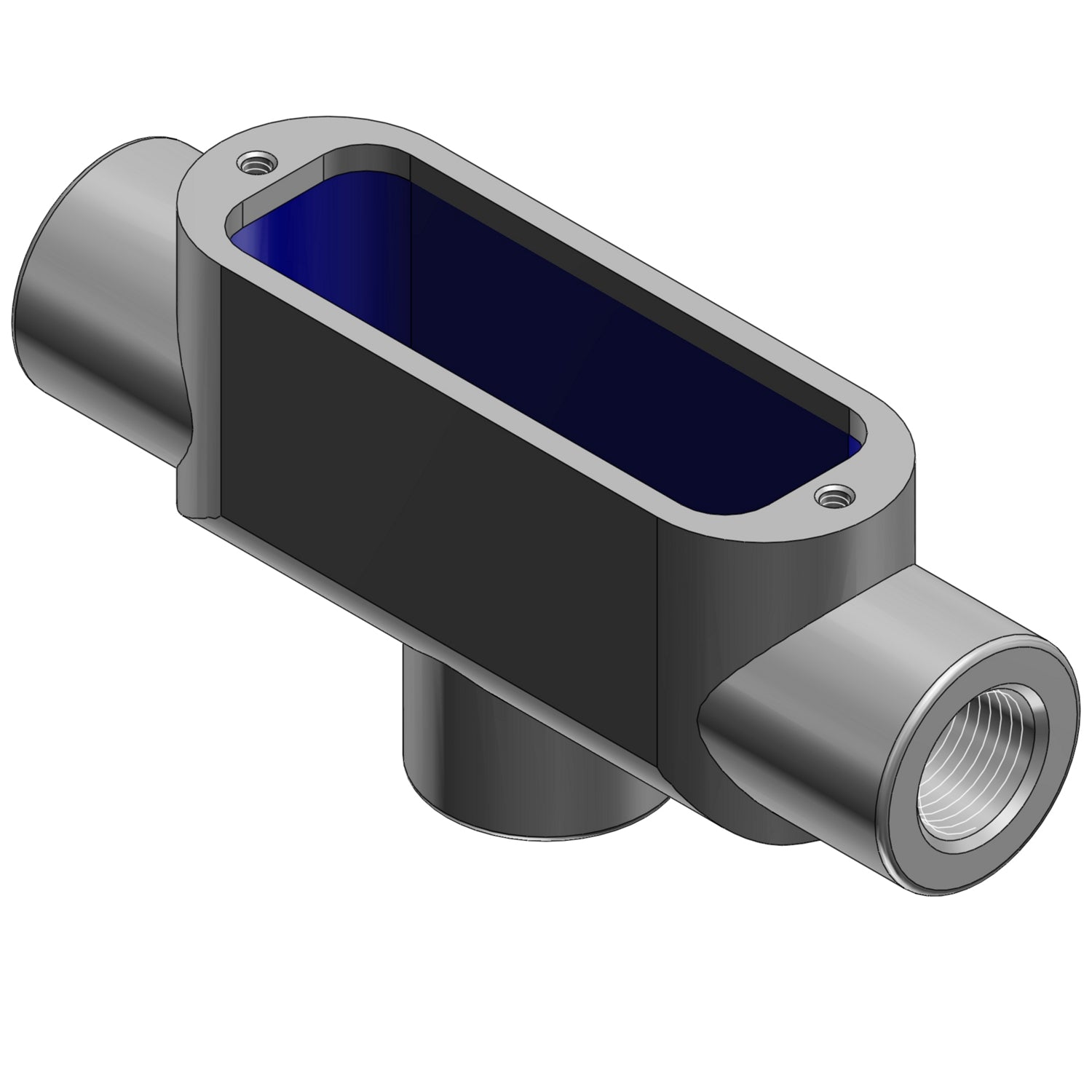

ABB TB50M Type TB Feed-Through Conduit Body

Product Description

The ABB TB50M is a Type TB feed-through conduit body. It is made from malleable iron with a zinc plating and aluminum acrylic coating. This product is meant for use with rigid and IMC conduit. It has tapered, threaded NPT hubs to allow for easy access to conductors for maintenance or system changes. The hub size is half an inch and offers a capacity of six cubic inches.

• Constructed from durable malleable iron.
• Designed for use with rigid and IMC conduit.
• Hub size of half an inch for versatile applications.

Product Highlights

This conduit body is ideal for professionals who require reliable access for electrical connections and maintenance tasks.

Product Information

Standard Information

• Brand: ABB
• MPN: TB50M

Technical Specifications

• Series: 35 Series
• Type: Type TB Feed-Through
• Material: Malleable Iron
• Finish: Zinc Plated/Aluminum Acrylic Coated
• Hub Size: 1/2 inch
• Connection Type: Tapered/NPT
• Capacity: 6 cu-in
• Dimensions: 5-1/4 inches W x 1-5/16 inches D x 1-5/16 inches H
• Number of Hubs: 3
• Standards & Approvals: ARRA, Buy American Act, RoHS Compliant, UL File No. E2969, CSA Certified
• Application: For rigid/IMC conduit and to connect conduit sections
