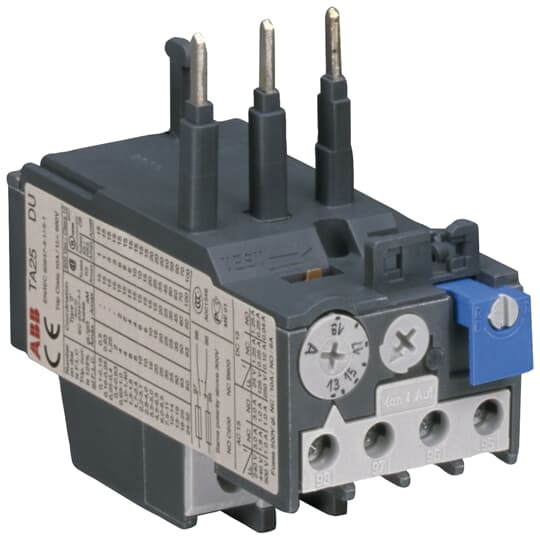

ABB TA25DU1.4 Overload Relay 1.0 - 1.4A TA25DU14

Product Description

ABB TA25DU1.4 is an overload relay designed to protect motors from overloads and phase failures. It is suitable for motors with a current setting range from one amp to one point four amps. The relay provides reliable and swift protection in industrial settings. It features a manual reset for convenience following a trip event. Its compact design allows for easy installation in various applications.

• Adjustable current range from one amp to one point four amps
• Manual reset mechanism
• Suitable for three-phase motors

Product Highlights

This device is appropriate for controlling motor applications and provides efficient protection against electrical faults.

Product Information

Standard Information

• Brand: ABB
• MPN: TA25DU1.4

Technical Specifications

• Type: Thermal Overload Relay
• Current Range: 1.0 - 1.4 A
• Number of Poles: 3
• Voltage Rating: 440/500, 690 VAC/VDC
• UNSPSC Code: 39121521
• Ambient Operating Temperature: -25 to +55 C
• Trip Class: Class 10A
• Dimensions: 3.15 x 1.73 x 3.7 inches
