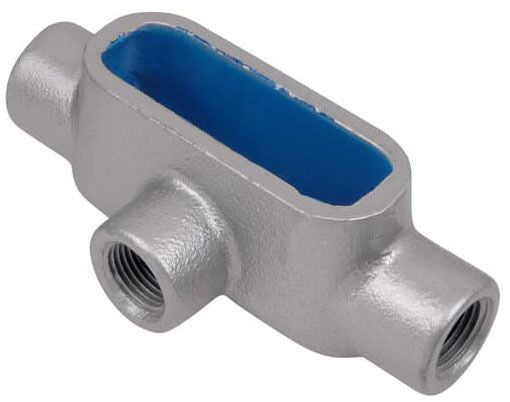

Abb T17-G Conduit Body T-shape Form 7

Product Description

The ABB T17-G is a T-shape Form 7 conduit body designed for use in electrical conduit systems. Conduit bodies of this type provide access points for wire pulling, splicing, and changes in direction within a raceway system. The T-shape configuration allows three-way branch connections, making it a practical fitting where a conduit run needs to split or intersect. At 1.77 pounds and with overall package dimensions of 13.5 inches by 7.5 inches by 7.62 inches, this is a robust fitting suited to commercial and industrial electrical installations. Licensed electricians and electrical contractors are the primary installers.

This conduit body is intended for use in electrical raceway systems where conduit runs require a T-configuration junction. Form 7 conduit bodies are commonly specified in commercial, industrial, and infrastructure wiring projects where accessible junction points are required by code. The fitting supports wire management at branch points and provides the access needed for conductor installation and future maintenance.

Key Features

• T-shape configuration enables three-way conduit branch connections
• Form 7 design provides an accessible interior for wire pulling and splicing
• Compact and durable construction suitable for commercial and industrial raceways
• Packaged in units of 10 per outer pack for project-quantity purchasing

Compatibility

Designed as an OEM-style fitting for use in standard electrical conduit raceway systems requiring a T-shape conduit body junction point.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements for conduit body sizing, fill calculations, and cover accessibility. De-energize all circuits before opening or working within any conduit body. Ensure the conduit body cover is accessible after installation as required by code. Do not exceed the conductor fill capacity appropriate to the trade size of the fitting.

Technical Specifications

• Shape: T-Shape
• Form: Form 7
• Package Dimensions (L x W x H): 13.5 inches x 7.5 inches x 7.62 inches
• Weight: 1.77 pounds
• Package Quantity: 10 per outer pack
• UPC: 70450840987

Standard Information

• Brand: ABB
• Manufacturer Part Number: T17-G
