Abb su203m-k6 Miniature Circuit Breaker 6 Amp 3 Pole UL489

ABB
Brand: ABB
SKU: SU203M-K6
Availability: In Stock

Ships same day if ordered by 12 pm
$101.33
$101.33
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

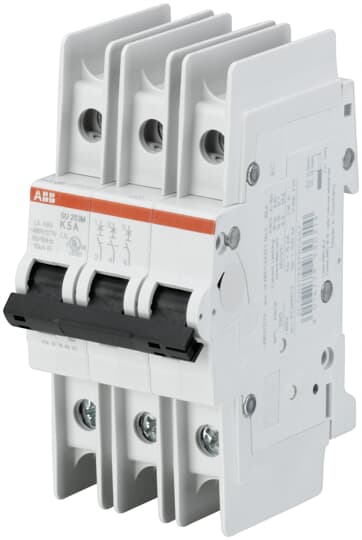

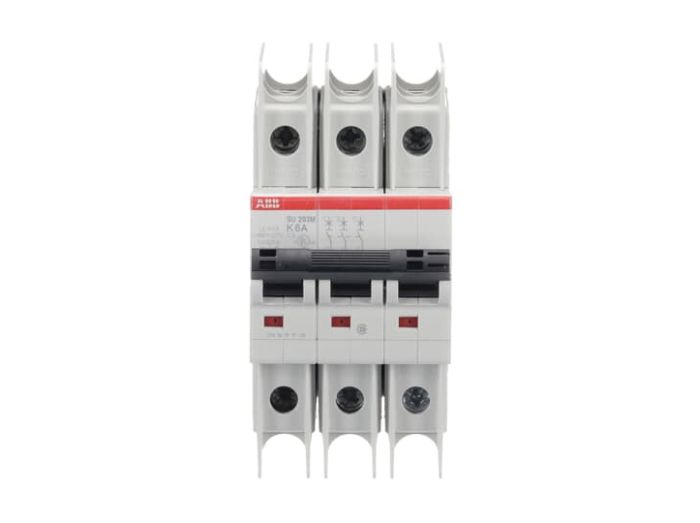

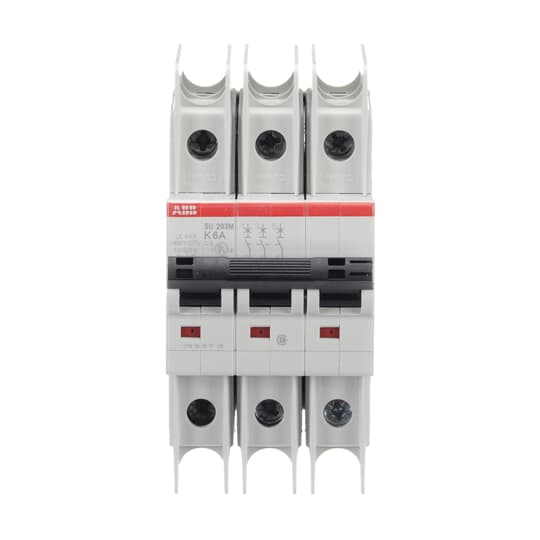

The ABB SU203M-K6 miniature circuit breaker is a high-performance device designed for supplementary, energy-limiting circuit protection. Rated at 6 Amps, this 3-pole breaker is suitable for voltage up to 277/Y480 VAC and 48/96 VDC. It is DIN rail mounted and features finger-safe and multi-function terminals, complying with UL 489 and CSA 22.2 No. 5 standards.

  • Rated Current 6 Amps
  • 3 Pole
  • Interrupt Rating 10 kA

Product Highlights

Provides branch circuit protection with a K-curve trip type and screw terminals. Suitable for use in various environmental conditions.

Product Information

Standard Information

  • Brand: ABB
  • Manufacturer Part Number: SU203M-K6
Technical Specifications
GTiN
04016779930321
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Brand
ABB
Width
52.5 mm
Height
111 mm
Length
69 mm
Current
6 Amp
Voltage
277/480 Volt
Amperage
6 Amp
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Trip Type
K-Curve
Product UPC
88861442360
12-Digit UPC
888614423602
Applications
Branch Circuit Protection
Power Rating
2 W
Mounting Type
35 mm DIN Rail
Terminal Type
Screw Terminals
Conductor Size
18-4 AWG/18-8 AWG
Number of Poles
3 Pole
Interrupt Rating
10 kAIC
Temperature Rating
-25 to 55 degrees C
Operating Temperature
55 degrees C
Environmental Conditions
25 C at 95 - 100% Relative Humidity, 55 C at 90 - 96% Relative Humidity, 3 Pollution Degree
Product Series
SU200M
Family Series
ABB Circuit Breakers, SU200M Series
Poles
3
Max Voltage
277/480 VAC
Trip Curve
K
Trip Unit
Fixed Thermal / Fixed Magnetic
Mounting
DIN Rail
Neutral Pole
No
Auxiliary Switch
Optional
Shunt Trip
Optional
Undervoltage Release
No
Alarm Switch
Optional
UL Standard
489
Approvals
CSA, UL
Volts AC
277, 480Y
