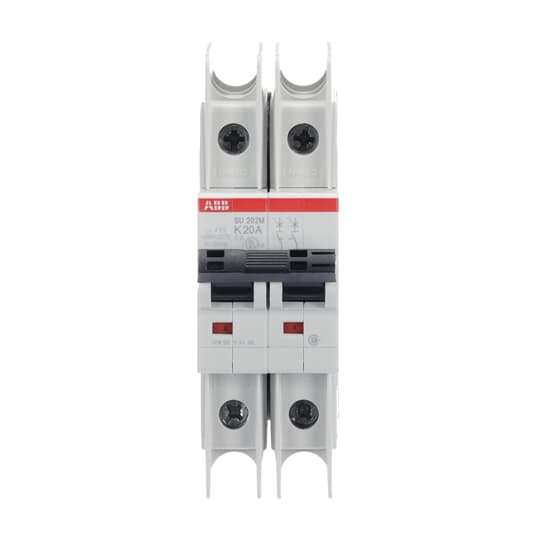

ABB SU202M-K20 UL489 MCB 2P K 20A 4

Product Description

The ABB SU202M-K20 is a miniature circuit breaker suitable for various applications. This model has a rated current of twenty amps and operates at voltages up to two hundred seventy-seven over four hundred eighty VAC and forty-eight VDC. The breaker includes a trip curve K and is designed to fit onto a standard DIN rail for easy installation. It meets UL 489 and CSA 22.2 No. 5 standards, ensuring reliability in power distribution.

• Rated for 20 Amps with a 10 kA interrupt rating
• Designed for branch circuit protection
• Mounting type is DIN rail, making installation straightforward

Product Highlights

This 2-pole breaker offers essential protection for a range of electrical services, ensuring safety and compliance in various installations.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: ABB Low Voltage

Technical Specifications

• Current Rating: 20 Amp
• Voltage Rating: 277/480 Volt
• Number of Poles: 2 Pole
• Tripping Characteristic: K-Curve
• Mounting Type: 35 mm DIN Rail
• Interrupt Rating: 10 kAIC
• Dimensions: 69 mm length x 35 mm width x 111 mm height
• Operating Temperature: -25 to 55 degrees C
