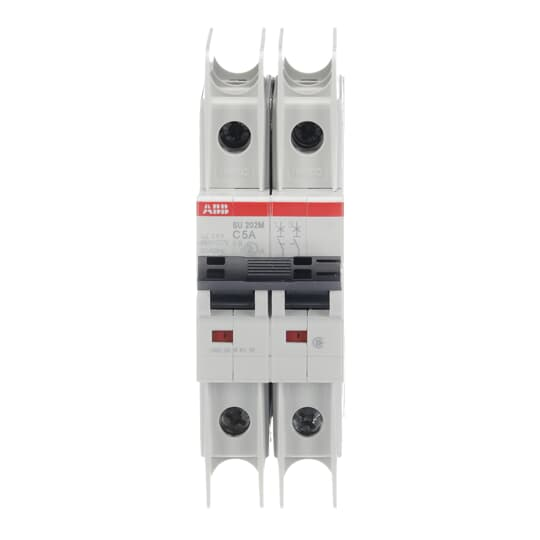

ABB SU202M-C5 UL489 MCB 2P C 5A 480

Product Description

The ABB SU202M-C5 is a miniature circuit breaker with a rated current of five amps and two poles. It is designed for use in power distribution systems, ensuring reliable protection against overloads and short circuits.

• Rated for up to 277Y/480 VAC and 48/96 VDC
• Interrupt rating of ten kA
• Finger safe and compact design for easy installation on DIN rails

Product Highlights

This product is ideal for branch circuit protection in various applications, including residential and commercial electrical systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: ABB Low Voltage

Technical Specifications

• Current: 5 Amp
• Voltage: 277/480 Volt
• Number of Poles: 2 Pole
• Trip Type: C-Curve
• Length: 69 mm
• Width: 35 mm
• Height: 111 mm
• Interrupt Rating: 10 kAIC
• Operating Temperature: Up to 55 degrees C
• Environmental Conditions: 25 C at 95 - 100% Relative Humidity
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Terminals
