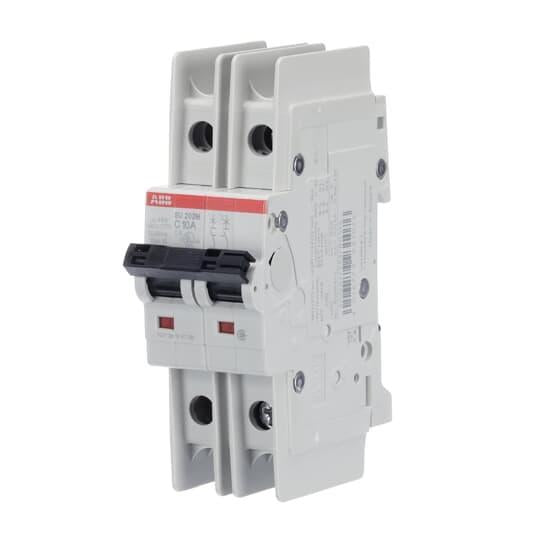

Abb Su202m-c10 Miniature Circuit Breaker 10 A

Product Description

The ABB SU202M-C10 is a miniature circuit breaker designed for UL 489 branch circuit protection up to 480 Y/277 V AC and 96 V DC. This 2-pole, 10A circuit breaker is suitable for AC and DC applications and is approved to UL, CSA, and IEC standards. It is compatible with System pro M compact UL 489 accessories.

• Current limiting according to UL 489
• Failsafe bi-directional cylinder-lift terminal
• High performance provides compact supplementary, energy limiting, circuit protection

Product Highlights

Miniature circuit breaker with approvals to UL, CSA, and IEC standards. Suitable for AC and DC applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: SU202M-C10
• Country of Origin: Belgium

Technical Specifications

• Poles: 2
• Type: Trip Curve C
• Manufacturer: ABB
• Brand: ABB
• Model / MPN: 2CDS272337R0104
• MPN: SU202M-C10
• Product Type: CIRCUIT_BREAKER
• IGCC: 4897
• Standard: CSA 22.2 No. 5 / IEC/EN 60947-2 / UL 489
• Application: Mainly used for controlling 3-phase motors and generally for controlling power c
• Family group: DISTRIBUTION EQUIPMENT
• Voltage Rating: 480/277/96 V
• Amperage Rating: 10 A
• Number of Poles: 2
• Special Features: SU202M-C10 Miniature Circuit Breaker C-Char.; 10kA; 10A; 2P UL489
• Tripping Characteristic: C
• Amps: 10 A
• Item: Miniature Circuit-Breaker
• Depth: 69 mm
• Width: 35 mm
• Height: 111 mm
• Standards: CSA, IEC, UL 489
• Curve Type: C
• Max. AIR Rating: 10 kA
• Interrupt Rating: 10 kA at 240V AC/480Y/277V AC/96V DC
• AC Voltage Rating: 400/440V AC
• DC Voltage Rating: 96V DC
• Terminal Connection: Busbar; Failsafe Bi-directional Cylinder-lift Terminal; Double Clamp
• Circuit Breaker Mounting Style: DIN Rail
• Approvals: UL 489
• Characteristic: C Curve
• Current Rating: 10 A
• Manufacturer Part Number: SU202M-C10
• Mounting Type: DIN Rail Mount
• Series: SU200M Series
• UPC Code: 4016779931076
• UPC: Does not apply
• Volts AC: 277, 480Y
• Mounting: DIN Rail
• Volts DC: 96
• Interrupt Rating AC: 10 kA
• Trip Type: C-Curve
• Wire Size: 18 to 4, 18 to 4 AWG
• UNSPSC: 39121603
