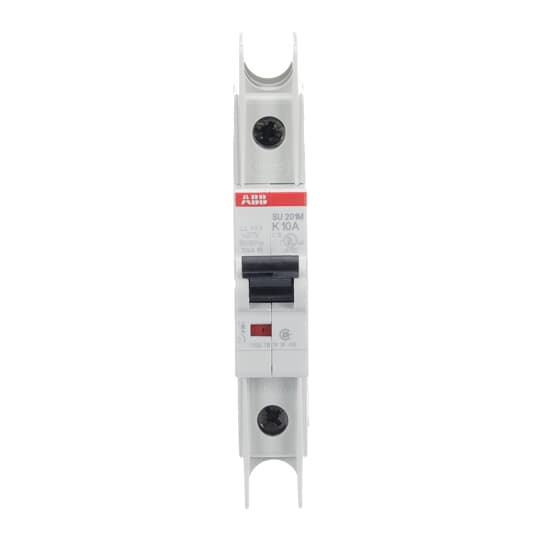

ABB SU201M-K10 UL489 MCB 1P K 10A 4

Product Description

The ABB SU201M-K10 is a miniature circuit breaker designed for effective circuit protection. Rated for a current of ten amps and equipped with one pole, this breaker is ideal for use in various applications. It features a ten kiloamp interrupt rating, making it suitable for both residential and commercial installations. The device operates at voltages up to two hundred seventy-seven volts alternating current and four hundred eighty volts alternating current, along with forty-eight volts direct current.

• Compact size for DIN rail mounting
• UL 489 certified for safety
• K-trip curve for precise tripping behavior

Product Highlights

This miniature circuit breaker is engineered for branch circuit protection, providing reliable and efficient performance in circuit management.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: ABB Low Voltage

Technical Specifications

• Current Rating: 10 Amp
• Number of Poles: 1 Pole
• Voltage Rating: 277/480 Volt
• Interrupt Rating: 10 kAIC
• Standard Compliance: CSA 22.2 No. 5, EN 60947-2, IEC, UL 489
• Dimensions: 17.5 mm width, 111 mm height, 69 mm length
• Operating Temperature: -25 to 55 degrees Celsius
• Mounting Type: DIN rail
