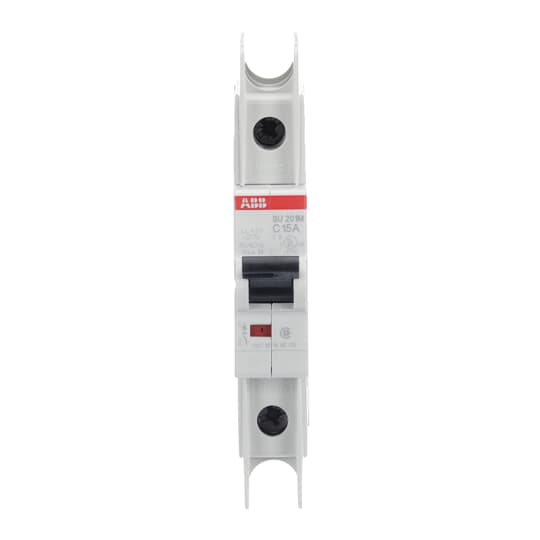

ABB SU201M-C15 UL489 MCB 1P C 15A 4

Product Description

The ABB SU201M-C15 is a miniature circuit breaker with a rated current of 15 amps. It features a single pole design and supports an interrupt rating of ten kiloamperes. The device complies with UL 489 standards and is suitable for voltages up to two hundred seventy-seven volts AC and four hundred eighty volts AC, as well as forty-eight volt DC. This breaker is designed for installation on a DIN rail, ensuring easy integration into existing electrical panels.

• Single pole, 15 amp rated current
• Interrupt rating of 10 kA
• DIN rail mounting for easy installation

Product Highlights

This circuit breaker is ideal for branch circuit protection applications, ensuring reliable operation in various electrical environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: ABB Low Voltage

Technical Specifications

• Type: Miniature Circuit Breaker
• Current: 15 Amp
• Voltage: 277/480 Volt
• Amperage: 15 Amp
• Number of Poles: 1 Pole
• Mounting Type: DIN Rail
• Terminal Type: Screw Terminals
• Trip Type: C-Curve
• Operating Temperature: -25 to 55 degrees C
• Environmental Conditions: 3 Degree of Pollution
• Weight: 0.27 kg
• Width: 17.5 mm
• Height: 111 mm
• Length: 69 mm
• Standards: CSA 22.2 No. 5, EN 60947-2, IEC, UL 489
