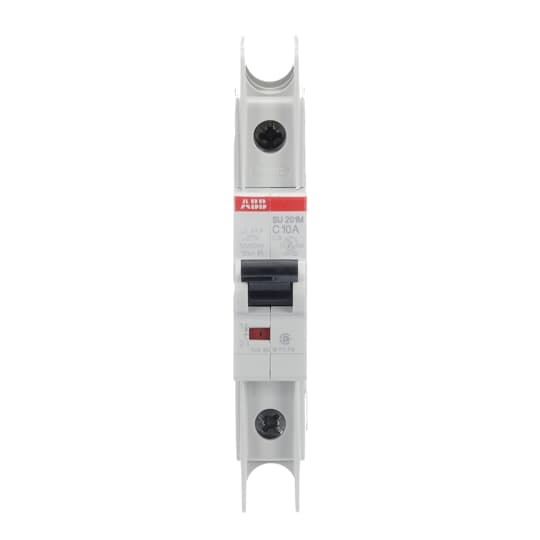

ABB SU201M-C10 UL489 MCB 1P C 10A 4

Product Description

The ABB SU201M-C10 is a miniature circuit breaker with a rated current of 10 Amps and one pole. It offers an interrupt rating of 10 kA and features a trip curve type C. This circuit breaker is suitable for voltages up to 277/480 VAC and 48 VDC. It is designed for DIN rail mounting and includes finger-safe and multi-function terminals, complying with UL 489 and CSA 22.2 No. 5 standards.

• Rated Current: 10 Amps
• Mounting Type: DIN Rail
• Interrupt Rating: 10 kAIC

Product Highlights

This circuit breaker is ideal for branch circuit protection and includes screw terminals for easy connections. The product functions effectively in various electrical applications and environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: ABB Low Voltage

Technical Specifications

• Current: 10 Amp
• Voltage Rating: 277 Volt AC / 48 Volt DC
• Number of Poles: 1 Pole
• Trip Type: C-Curve
• Width: 17.5 mm
• Height: 111 mm
• Length: 69 mm
• Temperature Rating: -25 to 55 degrees C
