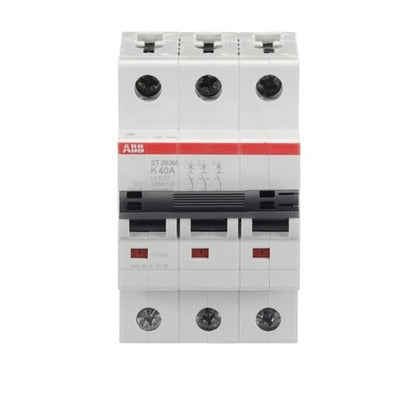

Abb st203m-k40 Miniature Circuit Breaker K-Char., Breaker Breaker

Product Description

The ABB ST203M-K40 miniature circuit breaker provides supplementary protection up to 480 Y / 277 VAC and 125 VDC. It is fully compatible with System pro M compact accessories. This 3-pole, 40 amp circuit breaker features a K curve and is suitable for DIN rail mounting. It conforms to UL 1077 and CSA 22.2 standards.

• Provides supplementary protection up to 480 Y / 277 VAC and 125 VDC
• Features a K curve for specific applications
• Fully compatible with System pro M compact accessories

Product Highlights

The ABB ST203M-K40 is a miniature circuit breaker with a K curve, DIN rail mount, and 40A current rating.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ST203M-K40

Technical Specifications

• Type: Trip Curve K
• UNSPSC Code: 39121603
• Manufacturer: ABB
• Characteristic: K Curve
• Current Rating: 40 A
• Manufacturer Part Number: ST203M-K40
• Mounting Type: DIN Rail Mount
• Number of Poles: 3
• Numeric ID: 2510416
• Series: ST200 M Series
• Termination: screw
• Voltage Rating: 480/277 V
• Poles: 3
• Volts AC: 277, 480Y
• Amps: 40
• Interrupt Rating AC: 10 kA
• Trip Curve: K
• Max Voltage: 125 VDC, 277/480 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Approvals: CCC, CSA, EAC, UL, VDE
