Product Description

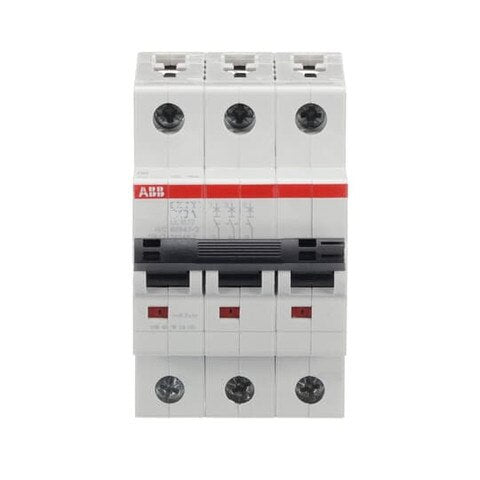

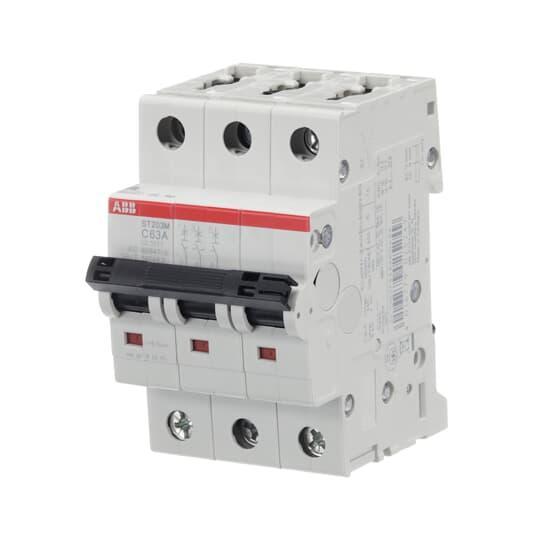

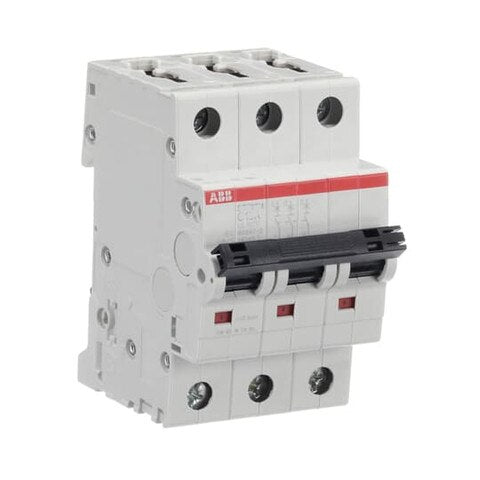

The ABB ST203M-C63 miniature circuit breaker provides supplementary protection up to 480 Y / 277 VAC and 125 VDC. It is fully compatible with System pro M compact accessories and ideal for multiple applications and markets. This thermal/magnetic circuit breaker has a C curve and a current rating of 63 A.
- DIN Rail Mount
- Thermal/Magnetic Trip
- Voltage Rating of 480/277 V
Product Highlights
The ABB ST203M-C63 is a miniature circuit breaker with a C curve, ideal for supplementary protection in various applications.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: ST203M-C63
Technical Specifications
-
Brand: ABB
-
Characteristic: C Curve
-
Current Rating: 63 A
-
Manufacturer Part Number: ST203M-C63
-
Mounting Type: DIN Rail Mount
-
Number of Poles: 3
-
Series: ST200 M Series
-
Termination: screw
-
Type: Thermal/Magnetic
-
Voltage Rating: 480/277 V
-
Interrupt Rating: 7.5 kA at 230 VAC
-
Wire Size: 14 to 8 AWG
-
Connection type: Double Clamped
-
Poles: 3
-
Volts AC: 277, 480Y
-
Interrupt Rating AC: 10 kA
-
Application: Supplementary protection acc. to UL 1077
-
Voltage: Up to 480Y/277 V AC and 125 V DC
-
Approvals: UL, CSA and IEC
-
Calibration Temperature: 40°C
-
Max Voltage: 125 VDC, 277/480 VAC
-
Trip Curve: C
-
Trip Unit: Fixed Thermal / Fixed Magnetic
-
Neutral Pole: No
-
Terminal Type: Screw
-
Auxiliary Switch: Optional
-
Shunt Trip: Optional
-
Undervoltage Release: Optional
-
Alarm Switch: Optional
-
UL Standard: 1077
