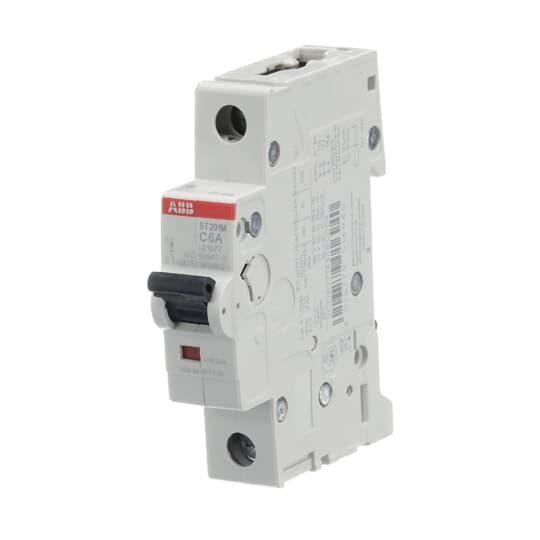

Abb st201m-c6 mcb st200m 1p c 6a

Product Description

The ABB ST201M-C6 is a miniature circuit breaker and supplementary protector with a rated current of 6 Amps. It features 1 pole, an interrupt rating of 10 kA, and a thermal magnetic trip curve C. The voltage is up to 277/Y480 VAC, 60/125 VDC. It is DIN rail mounted with finger-safe and multi-function terminals.

• Miniature Circuit Breaker
• Rated Current 6 Amps
• Interrupt Rating 10 kA

Product Highlights

The ABB ST201M-C6 provides reliable overload and short-circuit protection. Compact DIN rail mount for space-saving installation. C curve tripping for moderate inrush currents.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ST201M-C6

Technical Specifications

• Catalog Number: ST201M-C6
• Brand: ABB
• Voltage: 277 VAC, 60 VDC
• Actuator: Toggle
• Amperage: 6 Amp
• Trip Type: C-Curve, Thermal, Electromagnetic
• Trip Range: 1.03 - 1.25 A Thermal, 5 - 10 A Electromagnetic
• Product UPC: 88861480681
• 12-Digit UPC: 888614806818
• Mounting Type: DIN Rail
• Conductor Size: 35 mm Solid/Stranded, 25 mm Flexible
• Number of Poles: 1 Pole
• Housing Material: Thermoplastic
• Interrupt Rating: 10 kAIC
• Temperature Rating: -25 to 55 degrees C
• UNSPSC Code: 39120000
• Characteristic: C Curve
• Current Rating: 6 A
• Manufacturer Part Number: ST201M-C6
• Series: ST200 M Series
• Termination: screw
• Type: Thermal/Magnetic
• UPC Code: 4016779016940
• Voltage Rating: 277/60 V
• Manufacturer: ABB
• Product Series: ST200M
• Family Series: ABB Circuit Breakers, ST200M Series
• Description: ST201M-C6 Miniature Circuit Breaker ST201M-C6 Miniature Circuit Breaker C-Char., 10kA, 6A, 1P
• Poles: 1
• Max Voltage: 125 VDC, 277/480 VAC
• Trip Curve: C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Approvals: CCC, CSA, EAC, UL, VDE
• Frequency: 50/60 Hz
• Connection: Double Clamp Connection
• Wire Size: 18 to 4 AWG
• Insulation: Group II
• Enclosure: IP20/IP40
• Temperature: -25 to 55 deg C
