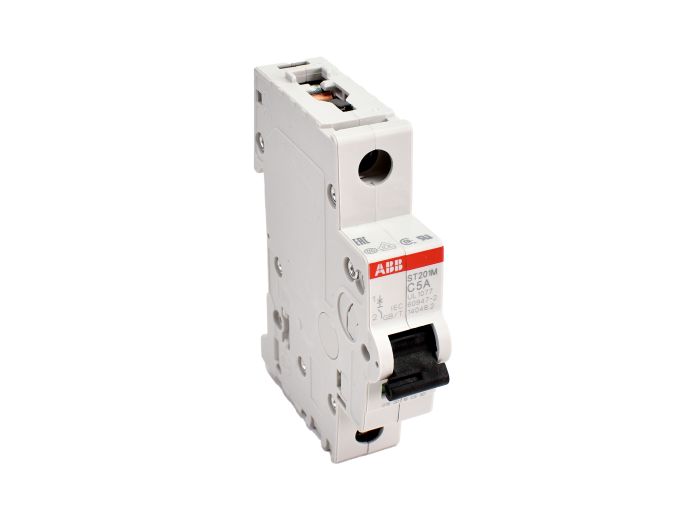

Abb ST201M-C5 MCB ST200M 1P C 5A UL1077

Product Description

The ABB ST201M-C5 MCB ST200M miniature circuit breaker provides supplementary protection up to 480 Y / 277 VAC and 125 VDC. It is fully compatible with System pro M compact accessories. The ST200M is ideal for multiple applications and markets.

• DIN Rail Mounting
• C Curve characteristic
• Suitable for AC/DC use according to UL1077 and CSA 22.2 No. 235

Product Highlights

The ABB ST201M-C5 circuit breaker has approvals according to the international standards UL, CSA and IEC. It features a 10kA interrupt rating.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ST201M-C5
• Country of Origin: US

Technical Specifications

• Type: CIRCUIT BREAKERS
• Brand: ABB
• Characteristic: C Curve
• Current Rating: 5 A
• Manufacturer Part Number: ST201M-C5
• Mounting Type: DIN Rail
• Number of Poles: 1
• Series: -
• Termination: screw
• Voltage Rating: 277/60 V
• Poles: 1
• Max Voltage: 125 VDC, 480 VAC
• Trip Curve: C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Approvals: CSA, UL
• Category: Circuit Protection
• Breaker Type: Thermal
• Current Rating (Amps): 5A
• Voltage Rating - AC: 277 V
• Actuator Type: Lever
• Illumination: None
• Approval Agency: CE, CSA, VDE, UL1077
• Condition: New
