Abb St201m-C10 Mcb St200m 1p C 10a

Product Description

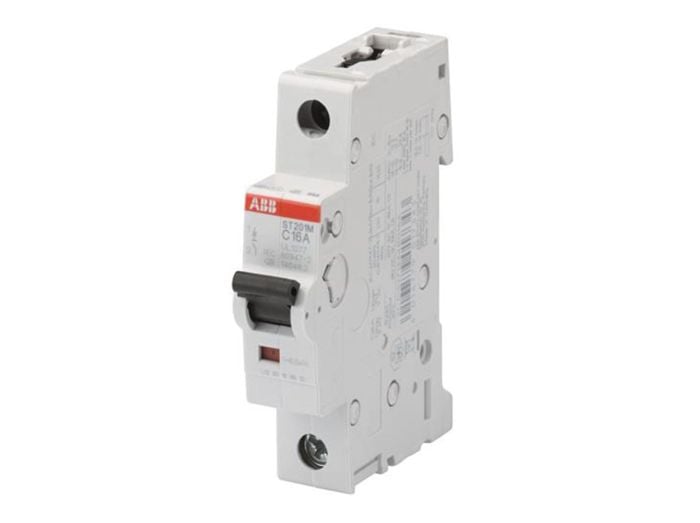

The ABB ST201M-C10 miniature circuit breaker provides supplementary protection up to 480 Y / 277 VAC and 125 VDC. It is fully compatible with System pro M compact accessories and ideal for multiple applications and markets. The device features an updated switching mechanism for increased triggering reliability.

• Supplementary protection according to UL 1077
• Up to 10kA at 480Y/277V AC and 125V DC
• Updated switching mechanism and assembly for increased triggering reliability

Product Highlights

The ABB ST201M-C10 is a miniature circuit breaker with a C curve, 10kA, and 10A. It provides supplementary protection and increased triggering reliability.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ST201M-C10

Technical Specifications

• Manufacturer: ABB
• Voltage Rating: 277 V AC, 60 V DC
• Amperage Rating: 10 A
• Number of Poles: 1
• Interrupt Rating: 10 kA
• Tripping Characteristic: C
• Mounting Type: DIN Rail Mount
• Series: ST200 M Series
• Type: Thermal/Magnetic
• Approvals: CCC, CSA, EAC, UL, VDE
• Termination: screw
• Standards: CSA 22.2 No. 235, UL 1077
• Current Rating: 10 A
• Characteristic: C Curve
• Product Series: ST200M
• Poles: 1
• Max Voltage: 125 VDC, 277/480 VAC
• Trip Curve: C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Product Range: System pro M compact ST200M Series
• Voltage Rating VDC: 60V
• Voltage Rating VAC: 230V
• Circuit Breaker Mounting: DIN Rail
• Mfr. #: ST201M-C10
• Mfr.: ABB
