Abb ST125-470 aluminum Star Teck connector 1-1/4 inch

Product Description

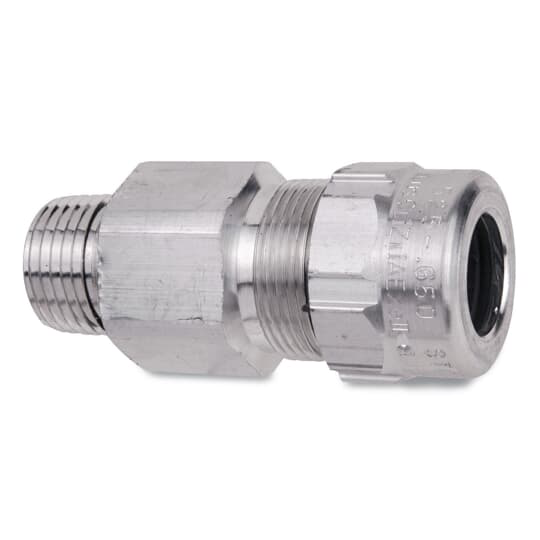

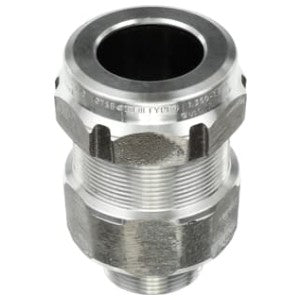

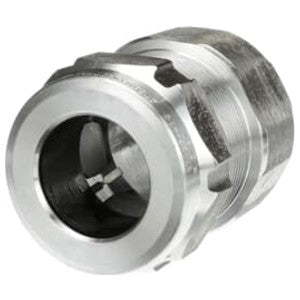

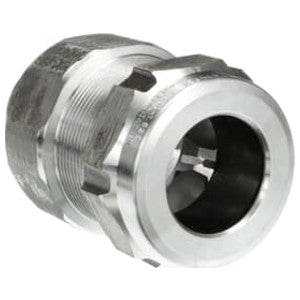

The ABB ST125-470 is a Star Teck aluminum jacketed cable fitting with a hub size of 1-1/4 inch and a range over jacket from 1.350 - 1.625 inch. It provides grounding continuity of cable armor and forms a mechanical grip for water and oil-resistant termination. The fitting allows armored, metal-clad, jacketed cable to pass through a bulkhead or enclosure.

• Watertight-Tapered bushing provides a secure, tight fit while eliminating cupping or water in vertical installations.
• Exclusive power-grip provides a grip that's high up on the cable, so strip length and cutting of cable are not critical.
• Stainless steel retaining ring withstands corrosive environments and is non-magnetic.

Product Highlights

Aluminum construction ensures durability, while the design facilitates easy installation in tight spaces. Suitable for hazardous areas when used with T&B sealing compound.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ST125-470
• Country of Origin: Canada

Technical Specifications

• Catalog Number: ST125-470
• Size: 1-1/4 in
• Type: Straight, Jacketed
• Brand: ABB
• Color: Silver
• Finish: Silver
• Material: Aluminum
• Standard: CSA 23086, CSA 4484, UL E38947
• Sub Brand: Star Teck®
• Trade Size: 1-1/4 Inch
• Thread Type: NPT
• Accepted Cable Diameter: 1.350-1.625 in
• Manufacturer Part Number: ST125-470
• Thread Size: NPT 1-1/4 in
• ECCN: EAR99
• UNSPSC: 39121311
• Family Name: T&B Teck-JMC Fittings
