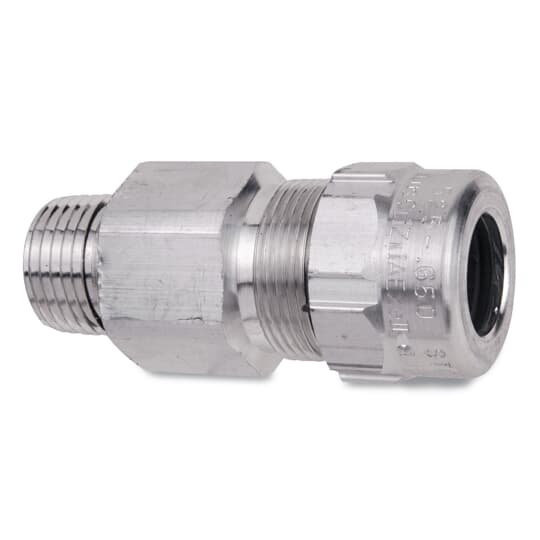

ABB ST100-469 Thomas & Betts ST100-469 1.187-1.375 Cord Range Aluminum Star Teck Connector

Product Description

The ABB ST100-469 is a Thomas & Betts aluminum star teck connector specifically designed for cord ranges between 1.187 inches and 1.375 inches. This fitting provides a secure connection and is suitable for use in various electrical applications. It has a hub size of one inch.

• Weather-resistant tapered bushing eliminates water entry.
• Low profile design facilitates installation in tight spaces.
• Non-magnetic stainless steel grounding ring for reliable grounding.

Product Highlights

The ST100-469 connector is engineered for the reliable passage of armored and jacketed cables through bulkheads or enclosures in ordinary locations. It is compatible with ACWU and MC cable types.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: ST100-469

Technical Specifications

• Application: Ordinary locations
• Cable Openings: 1.187 to 1.375 inches
• Material: Aluminum
• Dimensions: 2.23 inches diameter
• Temperature Rating: -40 to 194 degrees Fahrenheit
• Standards/Approvals: CSA 23086/4484, UL File No. E38947
• Trade Size: 1 inch
• Connection Type: NPT
