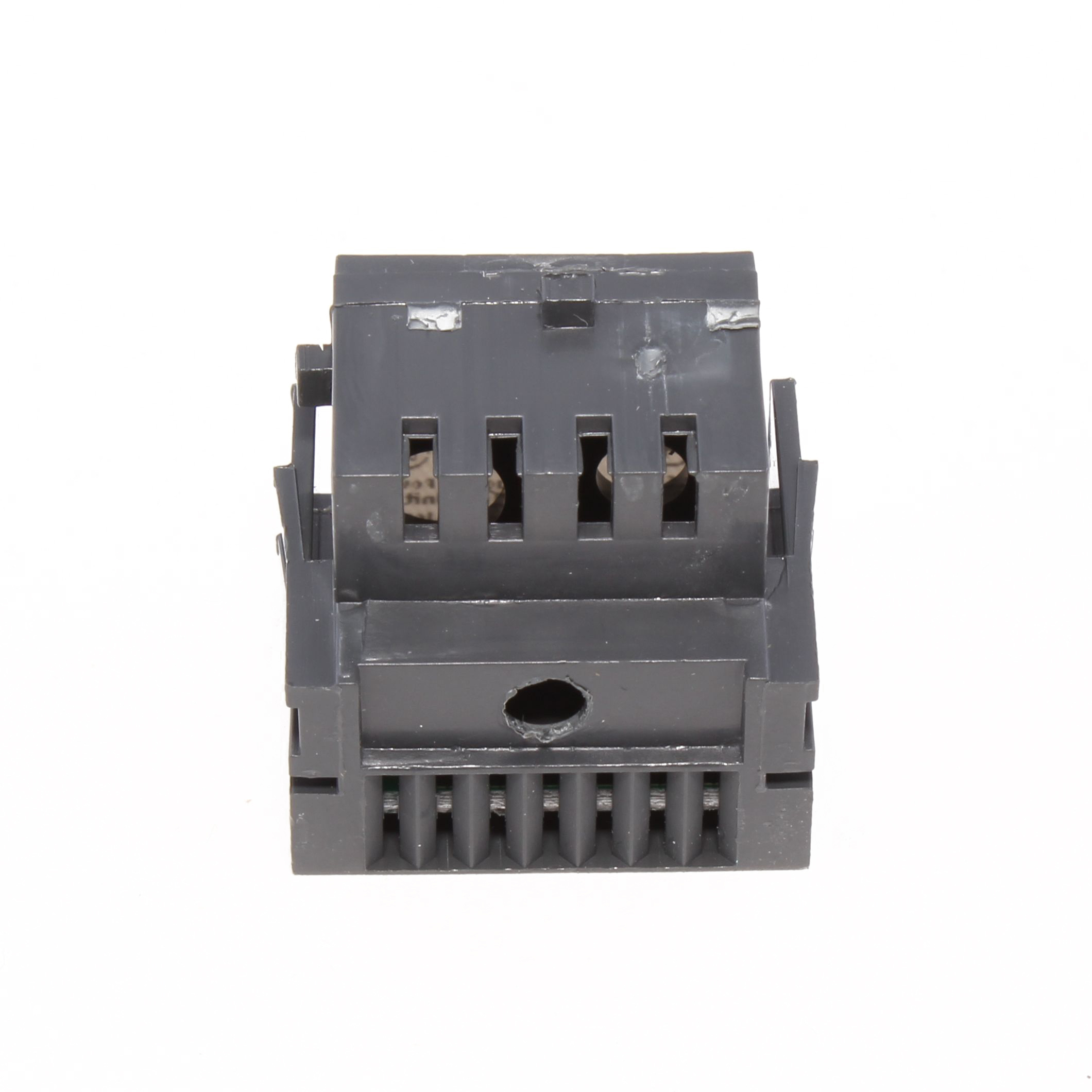

Abb SRPE60A60 Spectra E Rating Plug 60A

Product Description

The ABB SRPE60A60 is a standard rating plug designed for use with the Spectra E SE150 circuit breaker platform. Rating plugs set the continuous current rating of a molded case circuit breaker without requiring a full breaker replacement. This plug configures the breaker to a 60-amp continuous rating within a 60-amp frame. It is installed by licensed electricians during new construction, panel upgrades, or load circuit modifications where precise overcurrent protection calibration is required.

This rating plug is used in commercial and light industrial electrical distribution applications where Spectra E SE150-frame molded case circuit breakers are installed. It is a standard-duty plug suited for use in load centers, switchboards, and distribution panels. Electricians select rating plugs to match circuit demand without replacing the full breaker assembly, making them a practical component in multi-circuit panel configurations.

Key Features

• Sets continuous current rating to 60 amps within the SE150 frame
• Standard-duty rating plug for Spectra E SE150-frame breakers
• Allows current rating adjustment without full breaker replacement
• Direct OEM-style fit for the Spectra E platform
• Compact design for straightforward field installation

Compatibility

Designed for use with ABB Spectra E SE150-frame molded case circuit breakers as indicated by the SE150 designation in the product description. Verify frame and plug series compatibility before installation.

Installation Notes

Rating plugs are installed by qualified electricians. De-energize and lock out the panel or switchboard before removing or installing any rating plug in accordance with NFPA 70 (NEC) lockout/tagout requirements. Do not force or modify the plug body. Confirm the plug rating matches the circuit load requirements and breaker frame specifications prior to installation.

Technical Specifications

• Current Rating: 60 amps
• Frame Rating: 60 amps
• Breaker Platform: Spectra E SE150
• Plug Type: Standard
• UPC: 783164213089

Standard Information

• Brand: ABB
• Manufacturer Part Number: SRPE60A60
