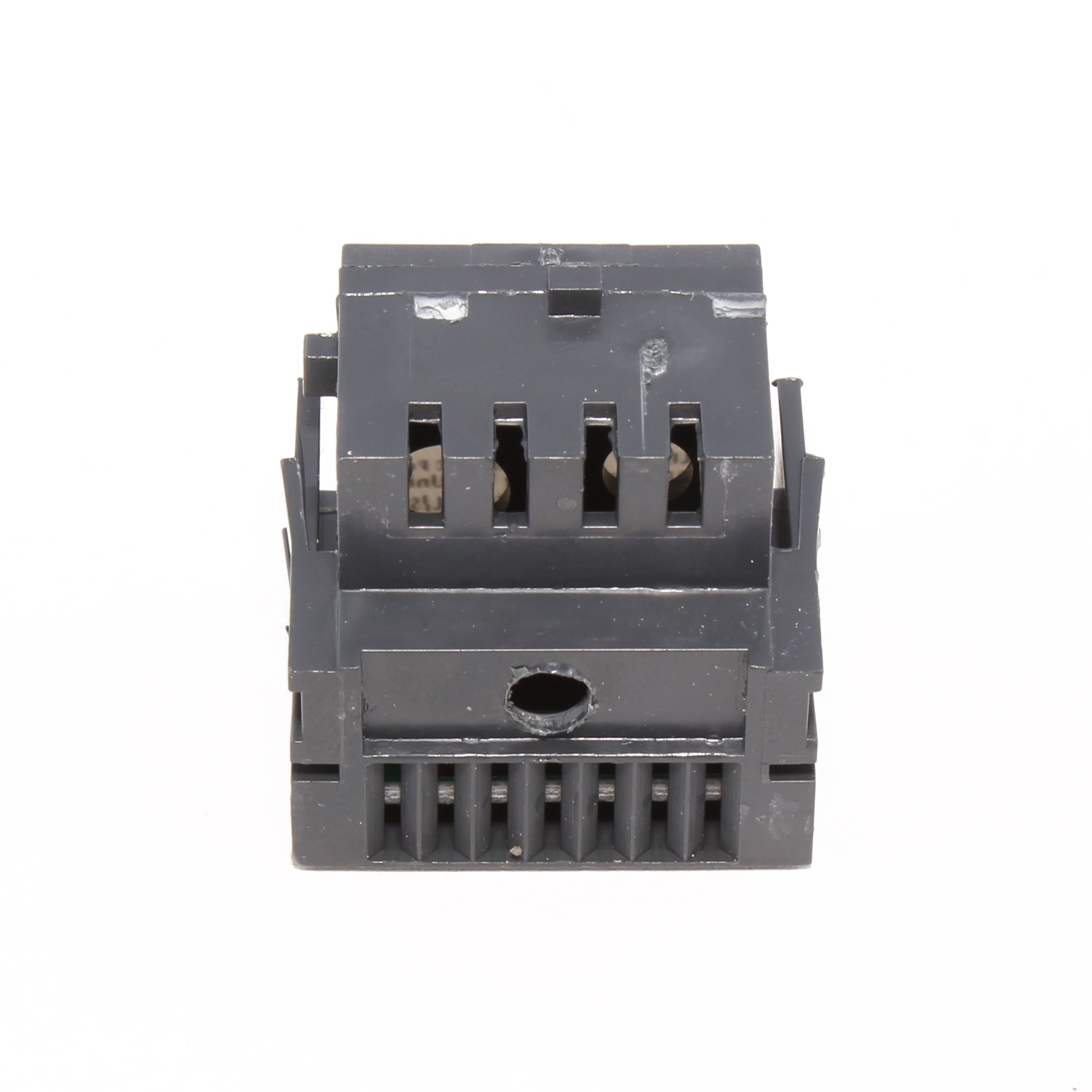

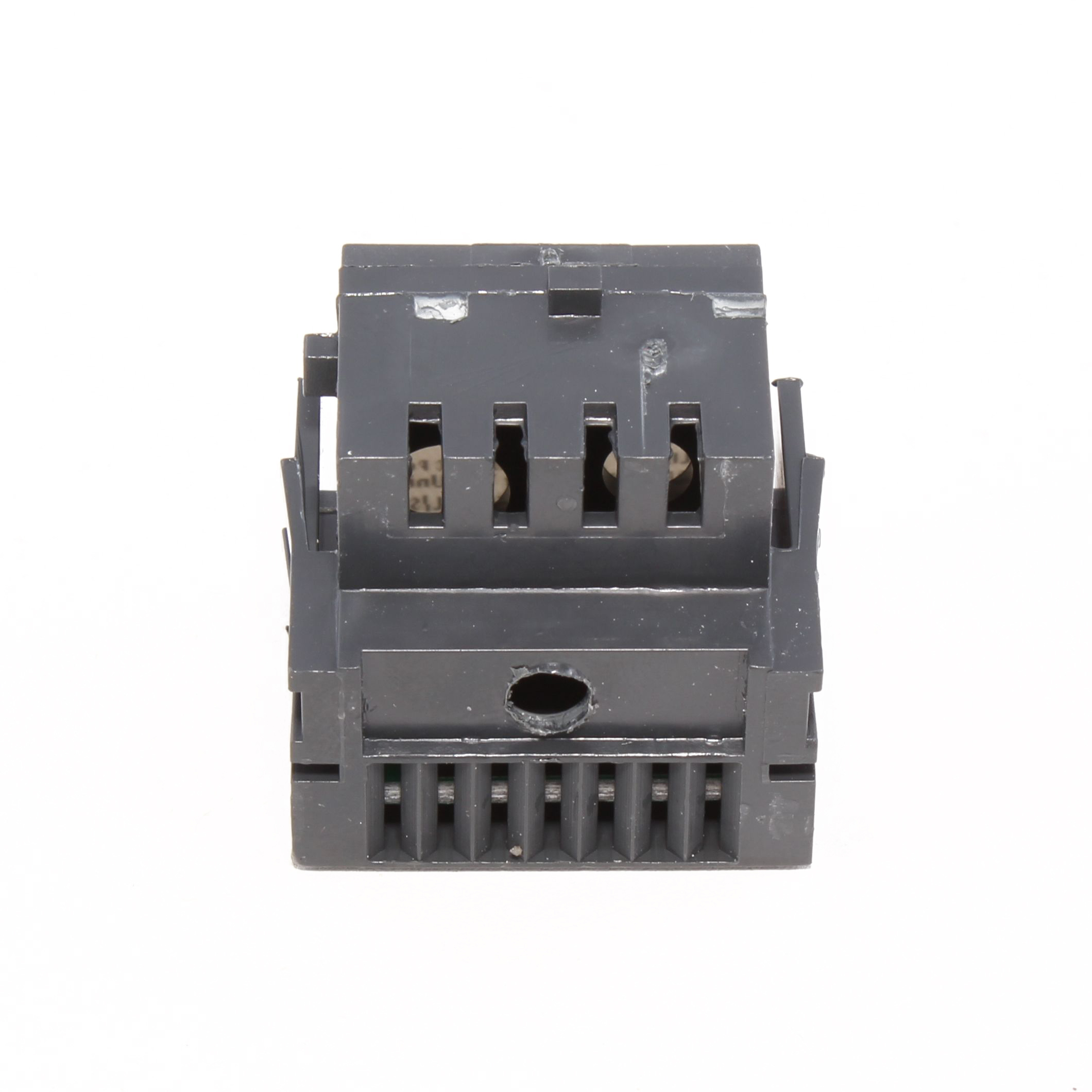

Abb SRPE60A50 Rating Plug 60A Sensor 50A Plug

Product Description

The ABB SRPE60A50 is a standard snap-in rating plug designed for use with GE Spectra series circuit breakers. Rating plugs set the ampere trip rating of a molded-case breaker independently from its frame size, allowing a single breaker frame to be configured for multiple load requirements. This plug features a 60-amp sensor rating paired with a 50-amp plug rating, giving electrical contractors and panel technicians a precise, field-adjustable overcurrent protection setting without replacing the entire breaker assembly. It is installed in commercial and industrial electrical distribution panels by licensed electricians.

The SRPE60A50 is suited for commercial and industrial power distribution applications where GE Spectra series molded-case circuit breakers are in service. The snap-in mounting design allows the plug to be seated directly into the breaker frame without additional hardware. This part is commonly specified during panel upgrades, load reconfigurations, or breaker refurbishments where the existing trip rating must be changed to match new circuit load requirements.

Key Features

• 60-amp sensor rating with 50-amp plug rating for precise overcurrent calibration
• Snap-in mounting for tool-free installation into compatible breaker frames
• Standard (STD) plug type for GE Spectra series breakers
• Allows ampere rating adjustment without full breaker replacement
• Supports panel reconfiguration and load rebalancing in the field

Compatibility

Designed for use with GE Spectra series molded-case circuit breakers as stated in the product data. Verify breaker frame series and sensor size before ordering to confirm fitment.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before handling any breaker components. Confirm the sensor and plug ratings are appropriate for the circuit load before inserting the rating plug. Do not interchange rating plugs between incompatible breaker frame sizes or sensor ratings.

Technical Specifications

• Sensor Rating: 60 amps
• Plug Rating: 50 amps
• Mounting Type: Snap-in
• Plug Type: Standard (STD)
• UPC: 783164213072

Standard Information

• Brand: ABB
• Manufacturer Part Number: SRPE60A50
