Abb Sk 615 550-80 Legend Plate Hand Off Auto 22mm

Product Description

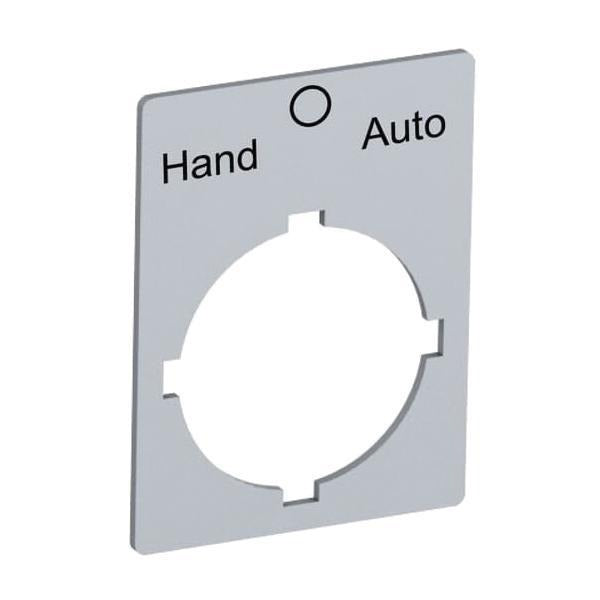

The ABB sk 615 550-80 is a rectangular aluminum legend plate designed for 22mm control stations and operator interface assemblies. It carries the Hand/Off/Auto designation, making it a standard component in motor control circuits where operators need clearly labeled selector switch positions. The plate measures 39 mm in length and 6 mm in width, fitting flush into compatible 22mm legend plate holders. Licensed electricians and industrial control technicians are the typical installers of this component in panel and control station applications.

This legend plate is used in industrial and commercial control panel environments where 22mm pushbuttons, selector switches, or pilot devices require clear operator labeling. The Hand/Off/Auto configuration is common in pump, fan, and motor control applications across HVAC, water treatment, and manufacturing facilities. It is installed directly into the legend window of a compatible 22mm operator or legend plate holder.

Key Features

• Hand/Off/Auto labeling for standard motor control selector switch applications
• Rectangular aluminum construction for durability in industrial panel environments
• 39 mm length fits 22mm control station legend plate windows
• 6 mm width provides a compact, low-profile label insert
• Pre-printed legend eliminates field labeling and reduces installation time

Compatibility

Designed as an OEM-style legend plate insert for ABB 22mm control station operators and legend plate holders that accept rectangular legend inserts.

Installation Notes

Installation is performed by a licensed electrician or qualified control panel technician. De-energize the control panel and lock out/tag out all power sources before accessing the operator assembly. The legend plate slides or snaps into the designated legend window on the front of the 22mm operator device. No special tools are typically required for legend plate insertion.
