ABB SH724MV Thomas & Betts 1 x 1 Inch Single Lock System Pin and Sleeve Connector

Product Description

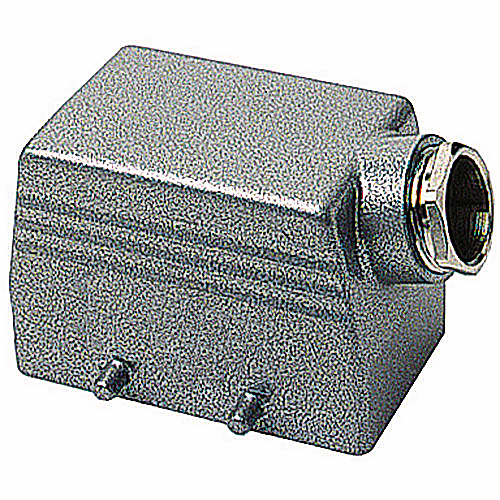

The ABB SH724MV is a single lock system pin and sleeve connector designed for industrial applications. This product features a side entry hood which is NPT entry measuring one inch by one inch, making it suitable for various connections. It is made from die cast aluminum with an epoxy powder coating, offering durability and resistance to corrosion.

• Side entry design for easy access
• Suitable for connections in industrial settings
• Rated for voltages up to 600 volts

Product Highlights

This connector is ideal for heavy-duty applications in industrial environments. It meets strict safety standards for electrical connectors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Entry Position: Side
• Entry Type: 1 x 1 inch NPT
• Finish: Epoxy Powder Coated
• Includes: Gaskets
• Material: Die Cast Aluminum
• Mounting Type: Standard
• Series: B Series
• Current Rating: 10 Amp, 16 Amp, 35 Amp
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 257 degrees F
• Standards/Approvals: CSA 70013, UL File No. E215386, IEC 529, VDE 0470
• Suitable For Use With: B Series Connector
