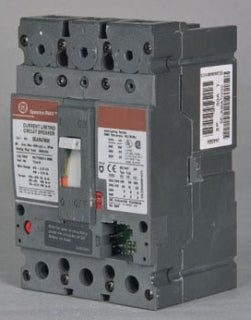

Abb SEDA36AT0100 Molded Case Circuit Breaker 100A 600V

Product Description

The ABB SEDA36AT0100 is a molded case circuit breaker designed for overcurrent protection in commercial and industrial electrical distribution systems. Rated at 100 amps and 600 volts with a 3-pole configuration, it delivers an interrupting capacity of 18 kA at 480 volts. The breaker uses a bolt-on connection type and incorporates solid state trip protection, providing precise, reliable response to overload and short-circuit conditions. Licensed electricians and electrical contractors specify this breaker for panel and switchboard applications where consistent fault protection is required.

This breaker is suited for 3-phase commercial and industrial power distribution applications. It installs in bolt-on style panelboards and switchboards operating at up to 600 volts AC. The solid state trip unit makes it appropriate for circuits requiring electronic overcurrent sensing rather than traditional thermal-magnetic mechanisms. Typical applications include feeder and branch circuit protection in commercial buildings, light industrial facilities, and multi-tenant electrical systems.

Key Features

• 100 amp continuous current rating for feeder and branch circuit protection
• 600 volt maximum voltage rating supports standard commercial and industrial distribution
• 3-pole configuration for 3-phase power distribution circuits
• 18 kA interrupting capacity at 480 volts for reliable fault clearing
• Bolt-on connection type for secure, low-resistance panel mounting
• Solid state trip protection for accurate, repeatable overcurrent response

Compatibility

Designed as an OEM-style molded case circuit breaker replacement for bolt-on commercial and industrial panelboards and switchboards rated up to 600 volts AC.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize and lock out the panel before removing or installing any circuit breaker. Verify that the panelboard bus rating and interrupt rating are compatible with this breaker before installation. Do not exceed the breaker ampere rating with downstream connected loads.

Technical Specifications

• Ampere Rating: 100 amps
• Voltage Rating: 600 volts
• Number of Poles: 3
• Interrupting Capacity: 18 kA at 480 volts
• Connection Type: Bolt-On
• Trip Protection Type: Solid State

Standard Information

• Brand: ABB
• Manufacturer Part Number: SEDA36AT0100
