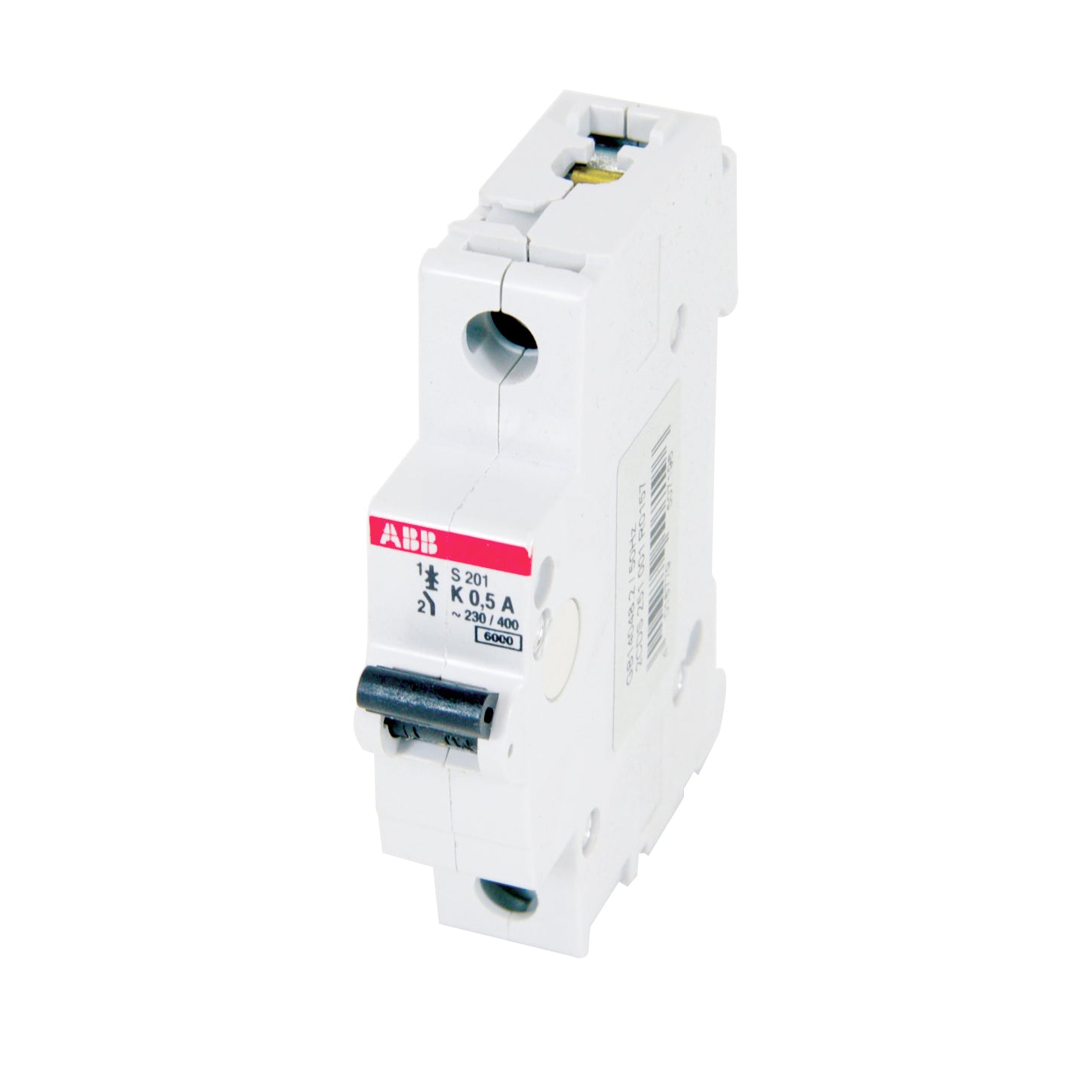

Abb S201-K0.5 Mini Breaker, S200, 1 Pole, Trip K, 0.5A

Product Description

The System pro M compact S200 miniature circuit breakers from ABB, MPN S201-K0.5, are current limiting with delayed thermal tripping for overload protection and electromechanic tripping for short circuit protection. This supplementary protector has a rated current of 0.5 Amps, a 6 kA interrupt rating, and a K thermal magnetic trip curve. Designed for higher in-rush current during system start-up, such as with motors and transformers.

• Miniature Circuit Breaker
• DIN Rail Mounted
• Voltage up to 277/Y480 VAC, 60/110 VDC

Product Highlights

The ABB S201-K0.5 is a 1-pole, 0.5A miniature circuit breaker with a K trip curve, suitable for DIN rail mounting and providing supplementary circuit protection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: S201-K0.5
• Country of Origin: US

Technical Specifications

• Type: CIRCUIT BREAKERS
• UNSPSC Code: 39121601
• GTiN: 00662019168456
• Brand: ABB
• Width: 17.5 mm
• Height: 88 mm
• Length: 69 mm
• Voltage: 277/480 Volt
• Amperage: 0.5 Amp
• Frequency: 50/60 Hz
• Trip Type: K
• Product UPC: 66201916845
• 12-Digit UPC: 662019168456
• Applications: Designed for Allowing Higher In-Rush Current During System Start Up; Example: Motors, Transformers
• Number of Poles: 1 Pole
• Interrupt Rating: 6 kAIC
• Operating Temperature: -25 To 55 degrees C
• Series: S200
• Mounting: DIN Rail
• Poles: 1
• Current Rating: 0.5 A
• Max Voltage: 125 VDC, 480 VAC
• Trip Curve: K
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Approvals: CSA, UL
• Part Number #: S201-K0.5
• Trip Range: 1.13 to 1.45 A, 3 to 5 A
• Wire Size: 18 to 4 AWG, 18 to 8 AWG
• UNSPSC: 39121603
