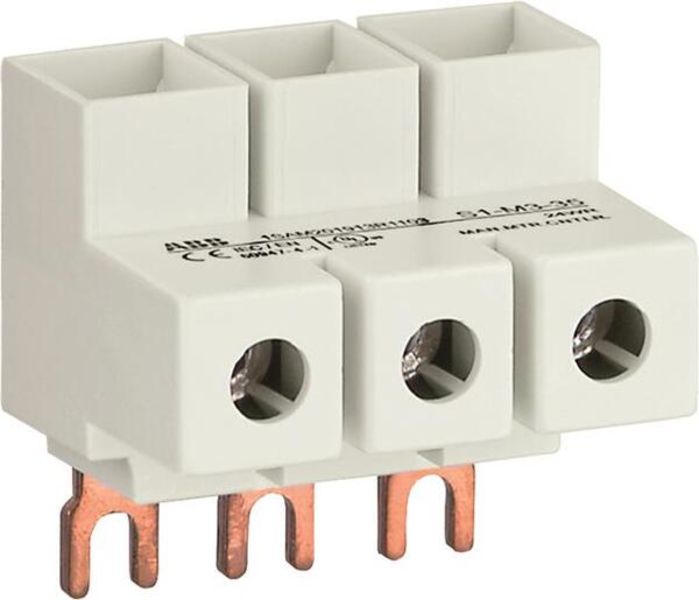

Abb S1-M3-35 92 Amp 3-Phase Feeder Terminals For Use On MS116 And 132 Manual Motor Protectors

Product Description

The ABB S1-M3-35 is a 92 Amp 3-phase feeder terminal designed for use on MS116 and 132 manual motor protectors. It serves as a 3-phase power infeed block flat, suitable for MS116 / MS132, and 35mm2 applications. It is required for UL 508 Types E or F applications and mainly used for controlling 3-phase motors and generally for controlling power.

• Designed for use with MS116 and 132 manual motor protectors.
• Features screw terminals for secure connections.
• Suitable for UL 508 Types E or F applications.

Product Highlights

This 3-phase feeder terminal is ideal for motor control and power distribution applications, ensuring reliable performance and safety.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: S1-M3-35

Technical Specifications

• Brand: ABB
• Standard: RoHs; CSA; cUL; CE; GOST
• Applications: Required for UL 508 Types E or F applications
• Terminal Type: Screw Terminals
• Number of Poles: 3 Pole
• Manufacturer: ABB
• Manufacturer Part Number: S1-M3-35
• UPC Code: 4013614400834
• Description: Power Infeed Block | 1SAM201913R1103
• Product ID: 1SAM201913R1103
• Extended Product Type: 1SAM201913R1103
• Product Name: Power Infeed Block
• Degree of Protection: IP20
• Ambient Air Temperature: Operation -25 …. +70 °C Storage -50 …+80 °C
• Standards: IEC/EN 60947-1 IEC/EN 60947-4-1 UL 60947-1 UL 60947-4-1
• Suitable For: MS325 MO325
• Tightening Torque: Main Circuit 4.5 N·m
• Connecting Capacity Main Circuit: Rigid 1x 10 ... 35 mm² Flexible 1x 10 ... 35 mm²
• Maximum Operating Voltage UL/CSA: Main Circuit 600 V
• Tightening Torque UL/CSA: Main Circuit 40 in·lb
• Wire Stripping Length: Main Circuit 12 mm
• Connecting Capacity Main Circuit UL/CSA: Stranded 1/2x 8 ... 2A AWG Flexible 1/2x 8 ... 2A AWG
• Ampere Rating UL/CSA: 92 A
• Rated Operational Current (I_e): 100 A
• Suitable for Product Class: Manual Motor Starter
• Rated Operational Voltage: 690 V
• RoHS Status: Following EU Directive 2002/95/EC August 18, 2005 and amendment
• EAN: 4013614400834
• Recommended Screw Driver: Hexgon SW4
• Instructions and Manuals: 2CDC131011M6802 2CDC131034M6801 2CDC131022M6802
• cUL Certificate: 1SAA963001-1701
• Data Sheet, Technical Information: 1SBC100192C02--
• Declaration of Conformity - CE: 1SAD938510-0056
• RoHS Information: 1SAA963003-4402
• UL Certificate: 1SAA963001-1602
• ETIM 4: EC002498 - Accessories for low-voltage switch technology
• ETIM 5: EC002498 - Accessories for low-voltage switch technology
• ETIM 6: EC002498 - Accessories for low-voltage switch technology
