Abb RD8-516 Ins Nyon Ring Trm 8 Blt 5/16in

Product Description

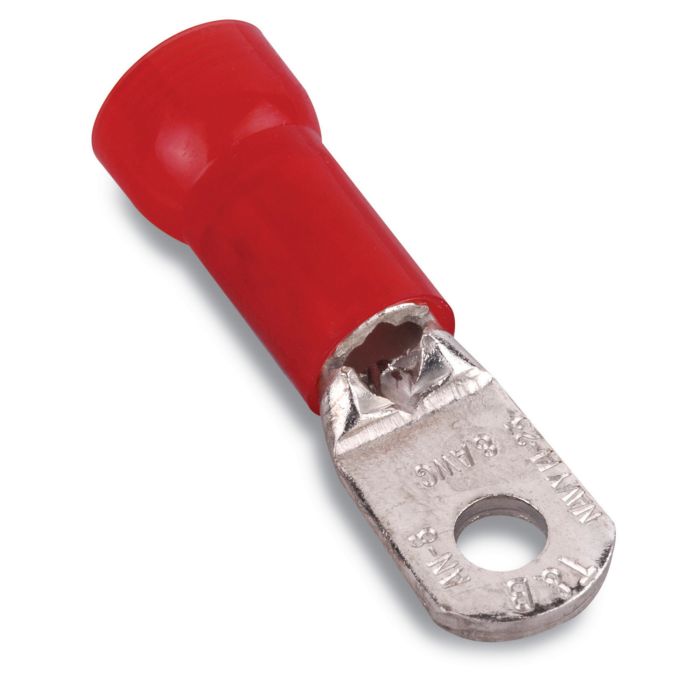

The ABB RD8-516 is a nylon insulated large ring terminal. This ring terminal has a length of 1.63 inches and a width of 0.57 inches, with a maximum insulation of 0.340 inches. Designed for an 8 AWG conductor and a 5/16 inch bolt hole, it is made of copper with tin plating and is rated for 600V.

• Features a funneled barrel entry.
• Offers deep internal serrations.
• Includes brazed or overlapping seams.

Product Highlights

The RD8-516 ring terminal ensures secure conductor connections and termination protection, enhancing the reliability of electrical equipment.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: RD8-516
• Country of Origin: MX - Mexico

Technical Specifications

• Catalog Number: RD8-516
• Brand: ABB
• Manufacturer: Thomas & Betts Co
• Terminal Type: RD
• Conductor Size: 8 AWG
• Type: Short Sleeve
• Color: Red
• Finish: Electro Tin Plated
• Voltage: 600 Volt
• Material: Copper
• Standard: UL E9809
• Stud Size: 5/16 in
• Sub Brand: Sta-Kon®
• Thickness: .04 in
• Wire Size: 8 AWG
• Insulation Type: Insulated Nylon
• Flamability Class: Rated V-2 Per UL94
• Temperature Rating: 105 degrees C
• Insulation Material: Nylon
• Family Name: Sta-Kon and Catamount Terminal
• Primary Type: Ring Terminal
• Series: RD Series
• Length: 1.63 in
• Barrel Type: Brazed/Overlapped Seam
• Tongue Type: Large Ring
• Tongue Size: 0.57 in W x 0.04 in THK
• Voltage Rating: 600 VAC
• Specifications: 0.34 in Dia Maximum Insulation, 0.36 in Clearance, Nylon Insulation
• Tin Coated: Tin Coated
• Rated Voltage: 600V
• Color Family: Red
