ABB RD8-14 Thomas & Betts RD8-14 8 AWG 1/4 Inch Stud Red Electrotinned Copper Nylon Insulated Ring Terminal

Product Description

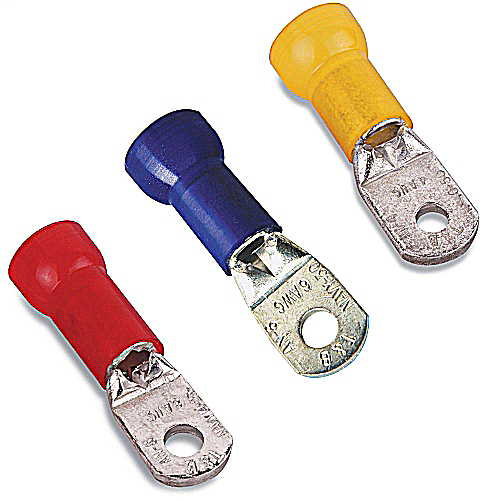

The ABB RD8-14 is a nylon insulated large ring terminal designed for wire connections. It features a stud size of one-fourth inch and accommodates wire sizes of eight AWG. The terminal measures one point five four inches in length. It includes a funnel entry and deep internal serrations for a secure connection. This connector is suitable for various applications in electrical wiring.

• Suitable for ERG4007 tool applications
• Tin plated copper for corrosion resistance
• CSA and UL approved for safety standards

Product Highlights

This insulated ring terminal provides reliable connectivity for electrical systems and is built to withstand a maximum voltage of six hundred volts.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: RD8-14

Technical Specifications

• Wire Size: 8 AWG
• Stud Size: 1/4 in
• Maximum Insulation Diameter: 0.34 in
• Width: 0.46 in
• Thickness: 0.04 in
• Temperature Rating: 105 degrees C
• Voltage Rating: 600 VAC
• Material: Copper
